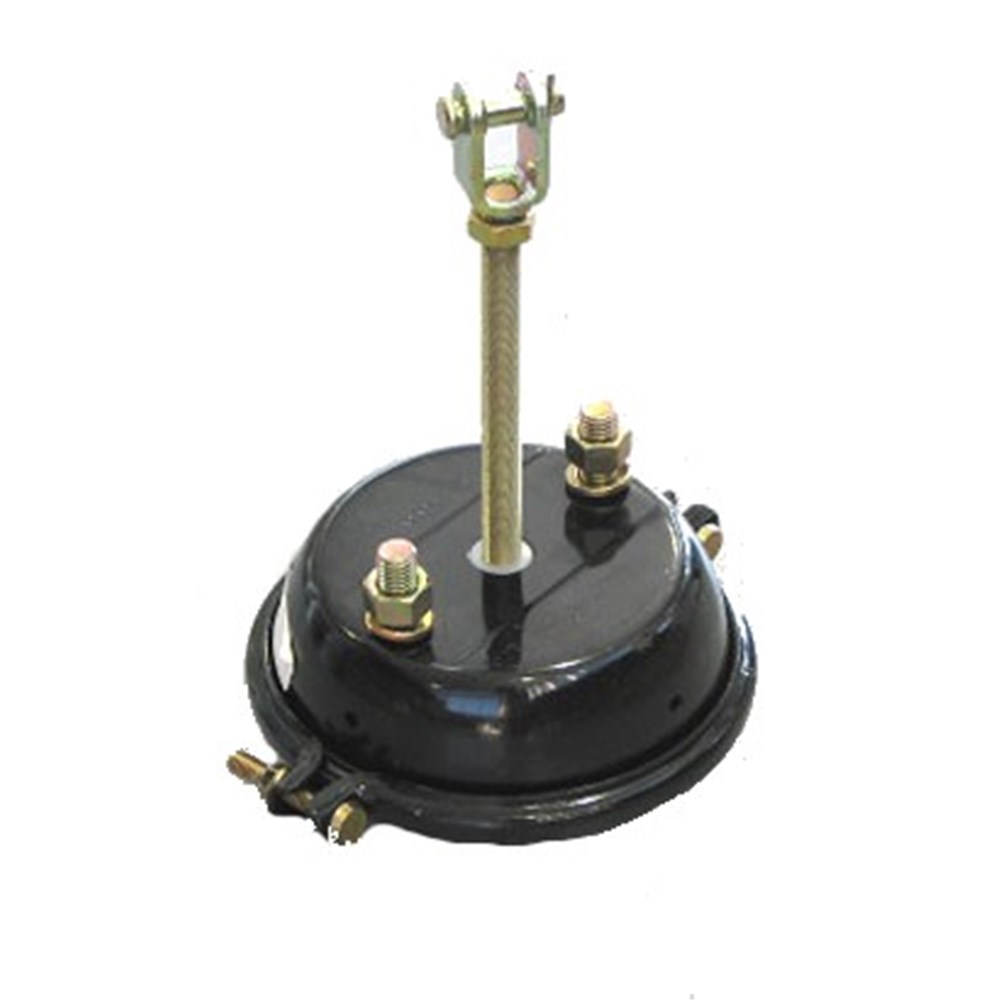

SERVICE CHAMBER TYPE 30

Product Code: AB1152

$54.98
Afterpay Logo
4 payments of $13.75
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
The structure of the service chamber is diaphragm type, which uses a single diaphragm to drive mechanical force. It converts the air pressure output by the foot brake valve into mechanical thrust to push the brake, so that the front axle of the vehicle generates braking torque.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Clamp & Inlet Port Angle 90°
Diameter 210
Height 210
Inlet Port 3/8" NPT
Length 105
Mounting Bolt Centre Distance 120.7
Mounting Bolt Length 40
Push Rod Length 270
Stroke 64
Type 30
Width 210
Available in Pack Quantity of
1
1 Year Warranty
