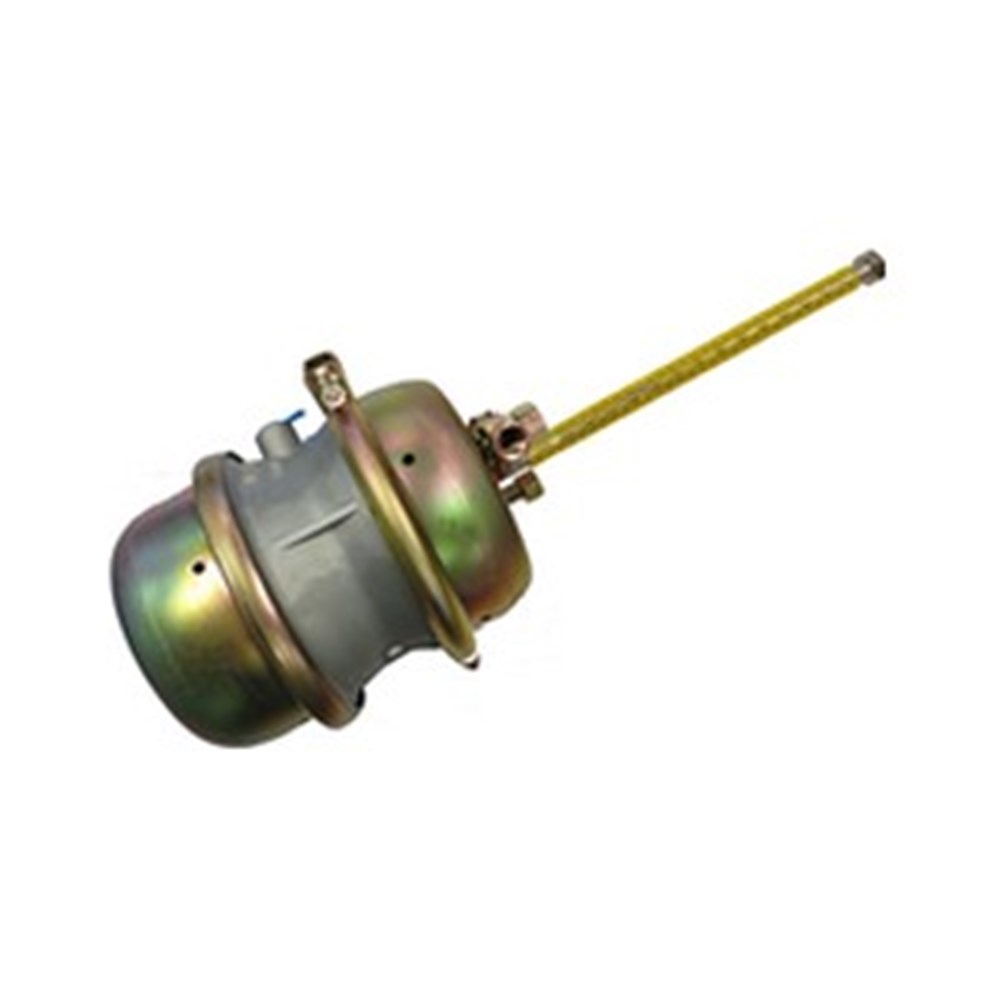

SPRING BRAKE 30/30

Product Code: AB1157

$75
Afterpay Logo
4 payments of $18.75
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
The double diaphragm spring brake chamber has both an inflation brake chamber and a deflation brake chamber. Force is generated by inflation and deflation, which is used for wheel braking. The pneumatic brake chamber is used for driving braking, and the deflation spring brake chamber is used for parking and emergency braking. The main feature of the spring brake chamber is to obtain mechanical braking force by releasing spring energy.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Clamp & Inlet Port Angle 90°
Diameter 210
Height 210
Inlet Port 3/8" NPT
Length 244
Mounting Bolt Centre Distance 120.7
Mounting Bolt Length 40
Push Rod Length 270
Stroke 64
Type 30/30
Width 210
Available in Pack Quantity of
1
1 Year Warranty
