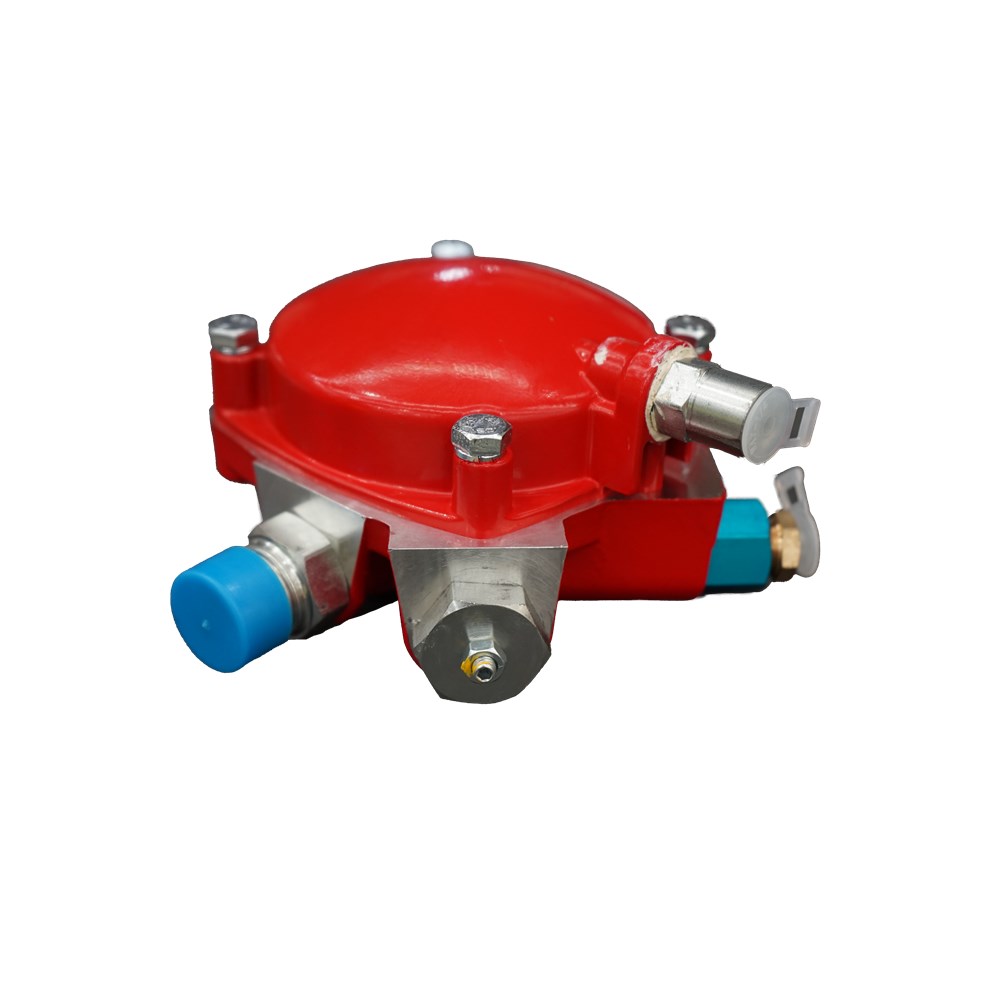

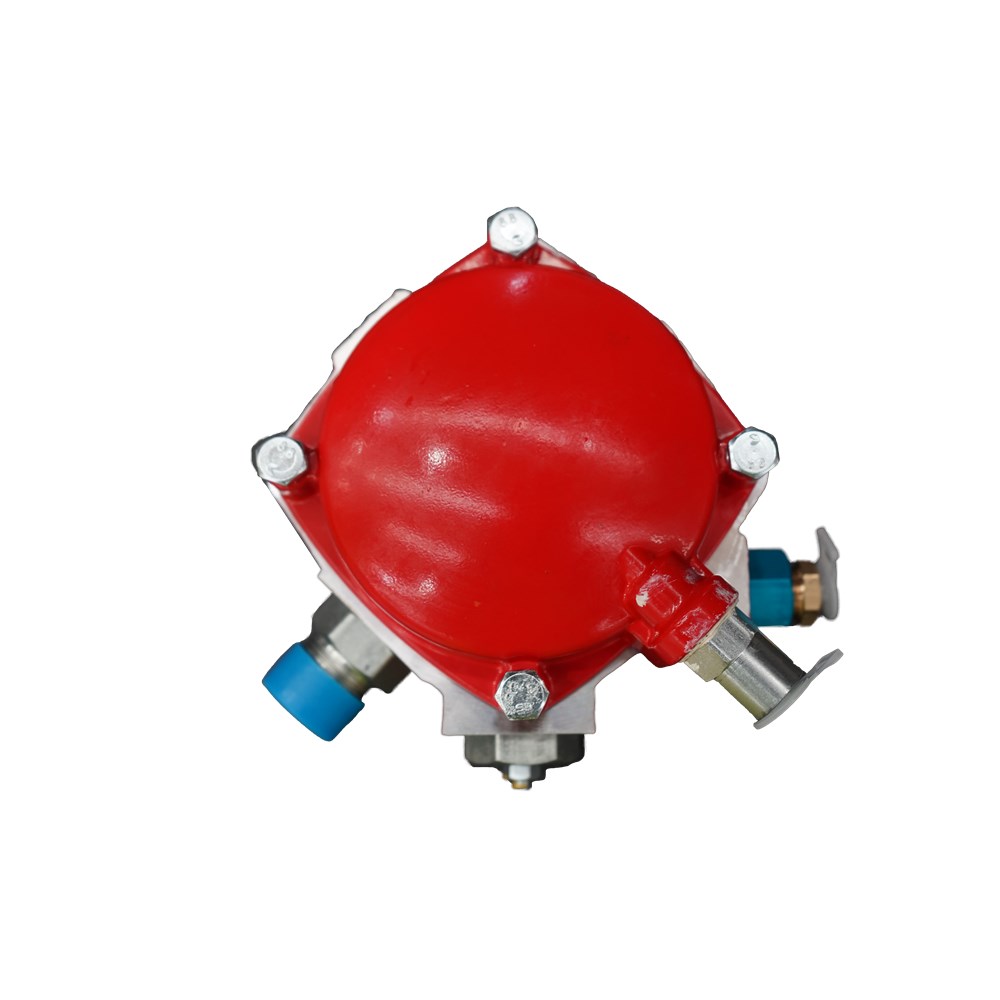

CA400 PARK BRAKE RELAY VALVE

Product Code: AB8472

$218.89
Afterpay Logo
4 payments of $54.72
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
The PBR CA400 P.A.R.C (Parking and Air Reservoir Control) valve provides a means of admitting and releasing air to and from the spring brake chambers. The CA400 P.A.R.C valve will service multiples of spring brake chambers, eg.tri-axles, quads etc. The valve is reservoir mounted and controlled by the supply line running from the prime mover.

All air delivered to and released from the spring brakes passes through the P.A.R.C valve with only a small amount of supply line air being exhausted from a valve mounted on the prime mover.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Anti-compound function prevents possibility of full emergency and service brake application simultaneously
Ideally suited for single and multi-axle configurations
Easy overhaul
ADR38/02 compliant
Colour coded for valve identification and maintenance simplicity
Technical Specifications
Delivery Ports 3/8" NPT
Height 120mm
Length 190mm
Ports 4
Supply Port 1/4" NPT
Tank Mount 3/4" NPT
Width 160mm
Available in Pack Quantity of
1
1 Year Warranty
