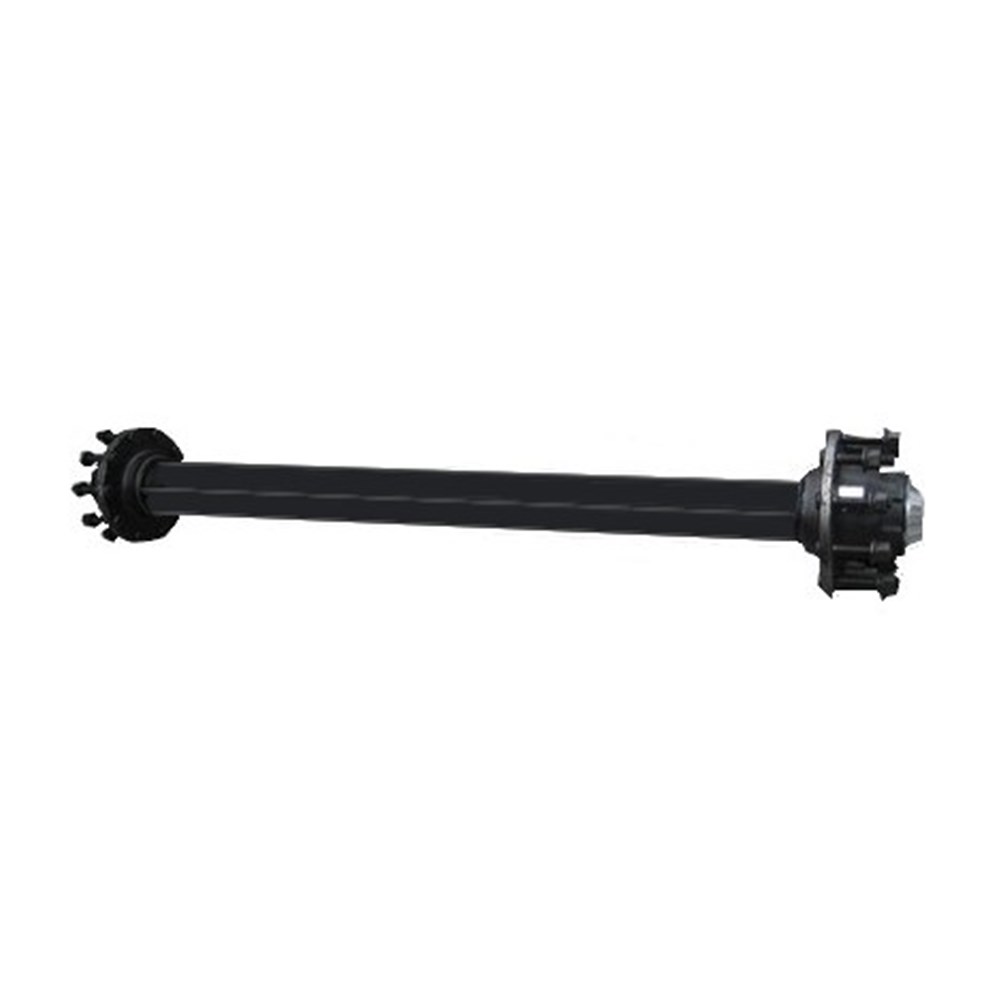

MAXUS AXLE 10/335 150mm SQ BEAM NO BRAKE

Product Code: AP0242SQMG3000NB

$2,500.12
Afterpay Logo
Unavailable for this order
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
MAXUS Axle Assembly 10 stud 335 PCD, no brake axle. 3000mm hub face, 6 inch square axle beam. MAXUS Axles are manufactured to strict quaility standards.
  • Key Features
  • Specifications
  • Documents
  • Warranty
No brake - cant put on the road (agricultrual)

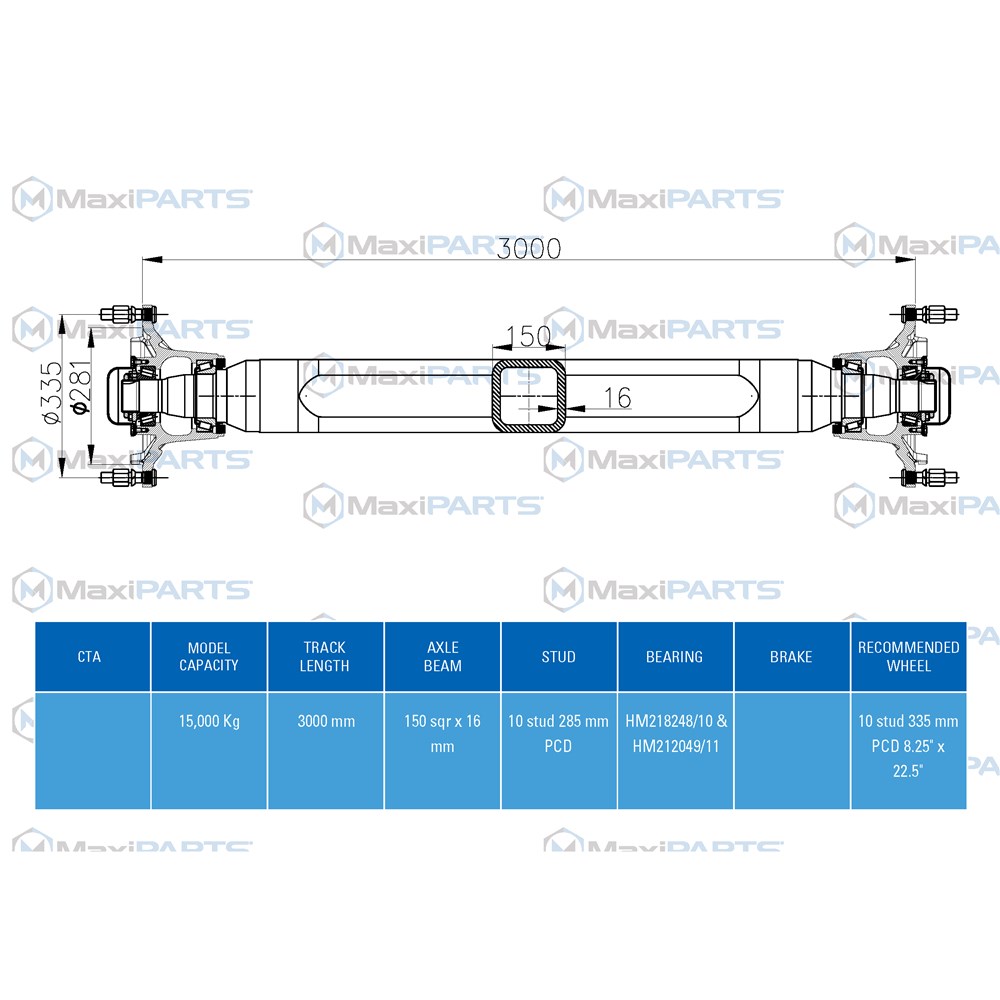

Technical Specifications
Axle Diameter (mm) Square Tube 150x150
Bearing Type HM212049/011 - HM218248/210
Colour Black
Height (mm) 374
Hub Type (Spoke/Stud/PCD) 280.8/10-M22x1.5/335
Length (mm) 3170
Track (mm) 3000
Wall Thickness (mm) 16
Width (mm) 374
Available in Pack Quantity of
1
