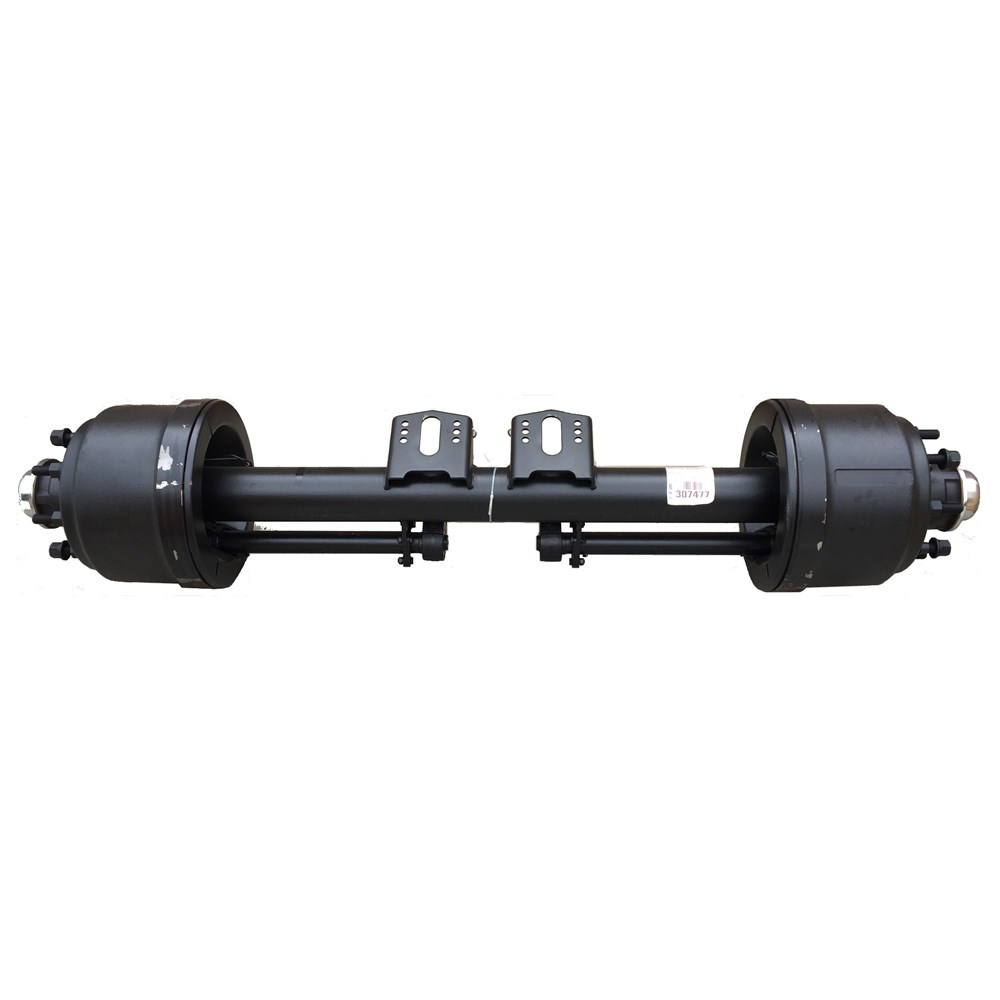

15" 10 STUD 225MM PCD AXLE ASSEMBLY

Product Code: AP0251MG1820LD

$2,445.60
Afterpay Logo
Unavailable for this order
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
MAXUS Axle Assemly. 10 stud 225 PCD. 12.75x7 brake long stud, ABS ready with inboard drums. 73 inch track and 6 inch tube.

MAXUS Axles are manufactured to strict quaility standards.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Axle Diameter (mm) 127
Bearing Type HM212049/011 - HM218248/210
Brake Size (Inches) 12.2" x7.5"
Colour Black
Height (mm) 356
Hub Type (Spoke/Stud/PCD) 176/10-M22x1.5/225
Length (mm) 2129
Track (mm) 1850
Wall Thickness (mm) 16
Width (mm) 356
Available in Pack Quantity of
1
