QUICK RELEASE VALVE ASSEMBLY

Product Code: BEN5003393

$71.96
Afterpay Logo
4 payments of $17.99
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

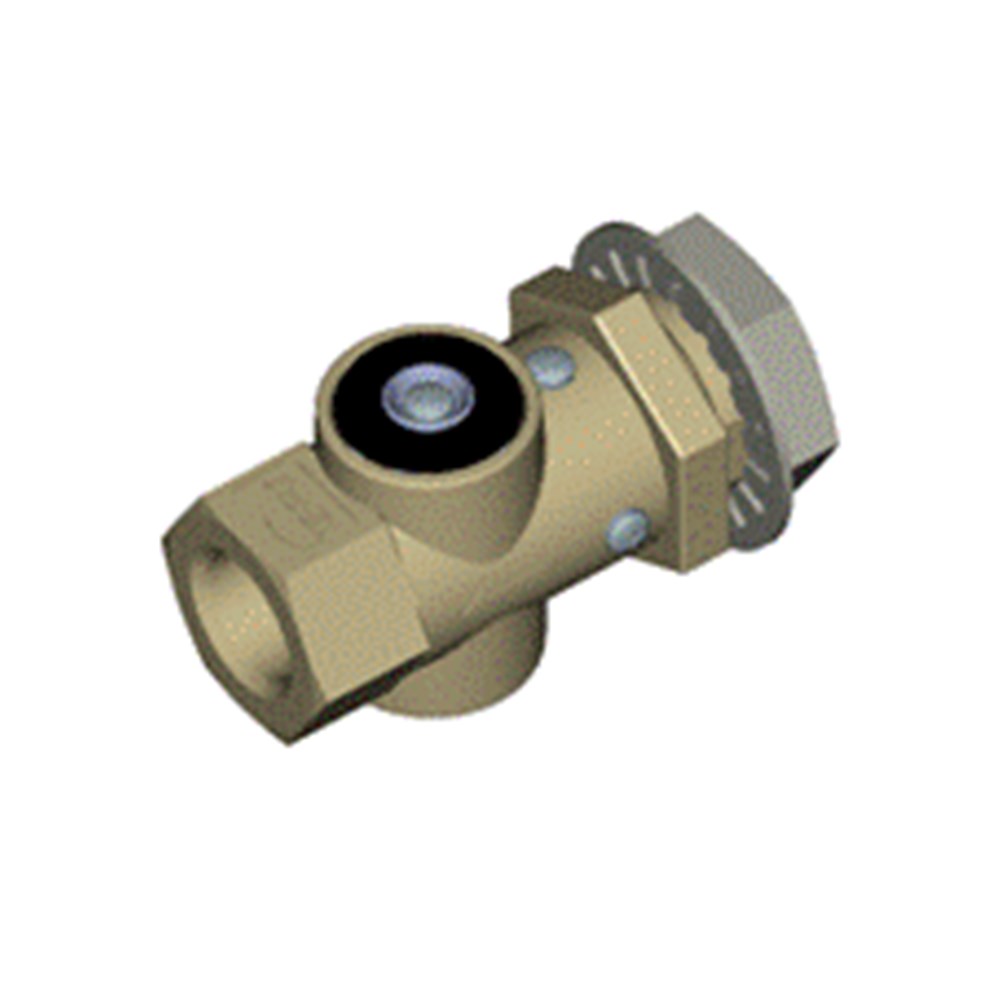

Bendix QR-L Quick Release Valve - 5003393.

The Bendix® QR-L™ quick release valve is similar to standard quick release valves such as the QR-1™, QR-N™, and QRN-2™. Its purpose is to “speed up” the release of air from air lines and devices it is attached to. Although primarily intended to enhance air system performance by rapidly exhausting supply or control air pressure from vehicle air lines, it can be used in a variety of different applications. It is uniquely suitable as an air system performance enhancement due to its 0 psi crack and differential pressure. Supply and delivery pressure is the same throughout the air pressure range.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Brand Bendix
Delivery Port 1 1/2-14 NPT (Female)
Exhaust Port Dust Shield (2x)
Height 38.1mm
Length 82.8mm
Maximum Operating Temperature 93 °C
Minimum Operating Temperature -45 °C
Mounting 1 1/8-14 UNS-2A (Bulkhead)
Supply Port 3/8-18 NPT (Female)
Width 43.43mm
Available in Pack Quantity of
1
