BPW A/BAG D36 V80/45X70/120 GFKAUS

Product Code: BPW0542943690

$422.68
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

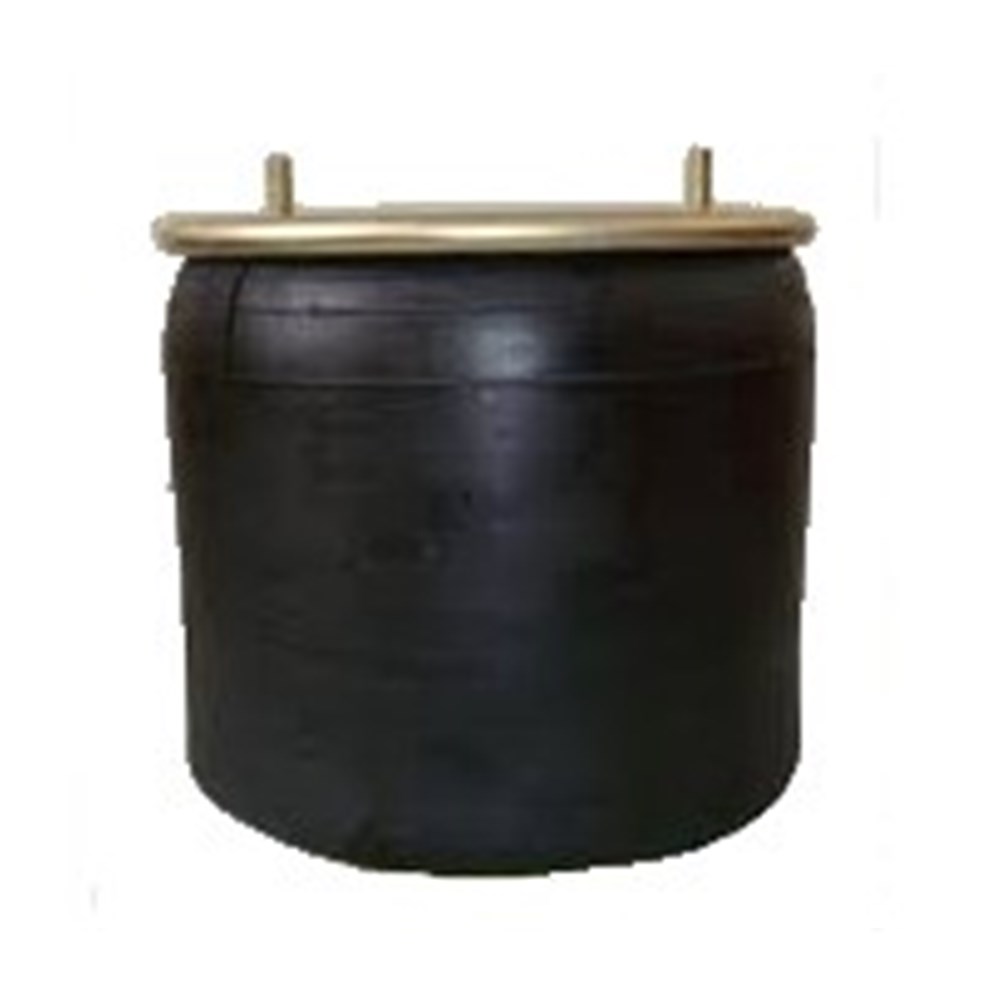

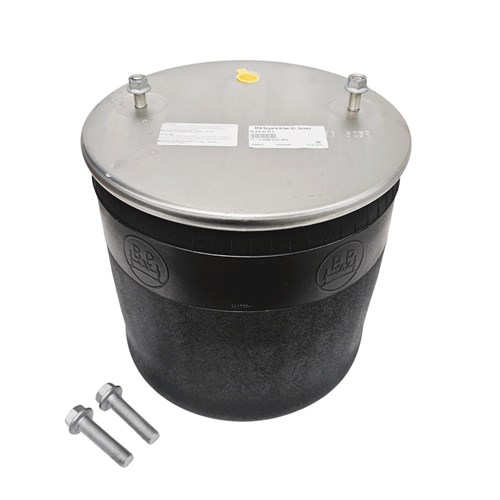

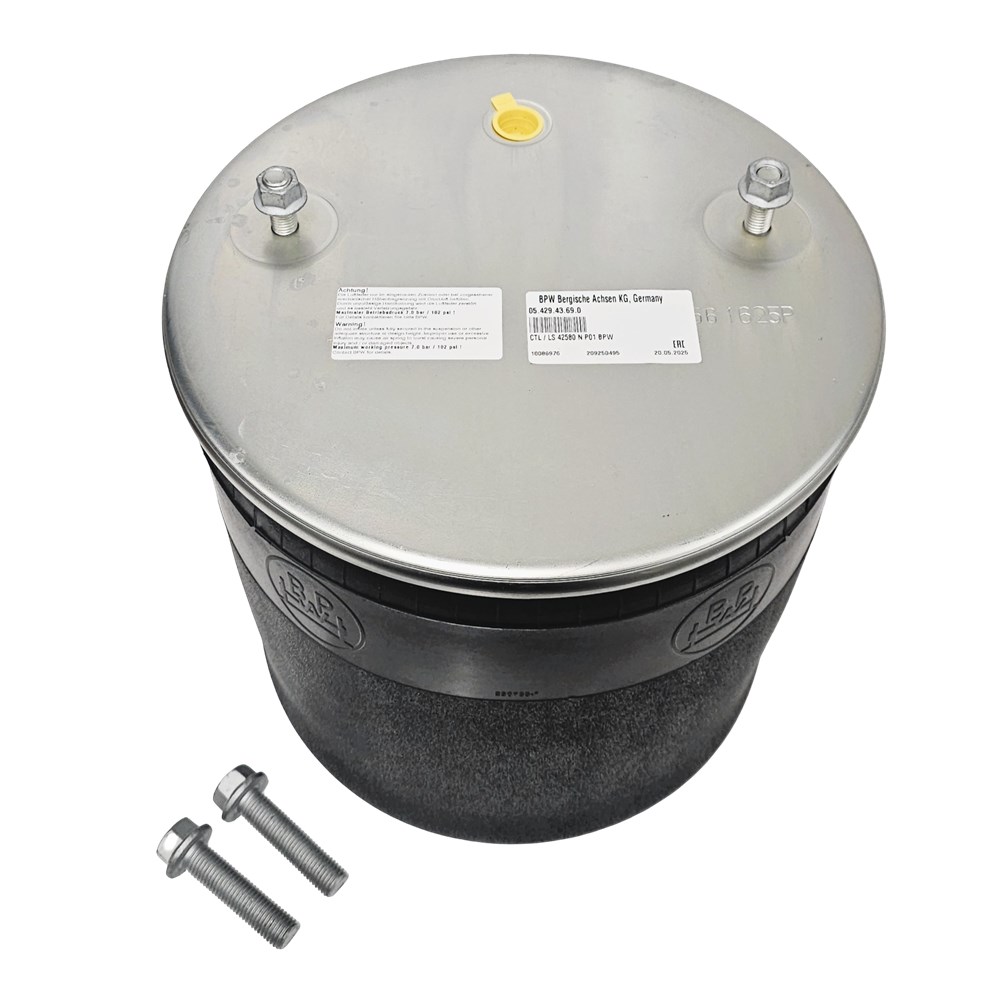

BPW D36 Air Bag Assembly made with a special rubber material with high UV resistance, and glass fibre piston.

Assembly Contains: 1x Air Bag (05.429.42.58.0), 1x Piston (05.139.39.52.0), 1x Threaded Sleeve (03.179.03.08.0), 1x Screw (03.340.12.23.0), 2x Locking Screw (02.5070.95.00), 2x Lock Nut (02.5273.29.88), 1x Plate (03.280.95.02.0).

BPW air bags are firmly rolled into the flange of the upper air bag cover and vulcanised with the clamping plate at the bottom. The upper air bag cover is either directly bolted to the bottom flange of the frame or a plate or mounting bracket is welded to the vehicle frame for fixing – depending on the air bag design. The air bag cover is fixed to it using two M 12 self-locking nuts. The lower air spring piston is bolted to the trailing arm using two M 16 self-locking nuts.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Diameter 360mm
Thread M 22 x 1.5
Type BPW 36
Available in Pack Quantity of
1
