MTM MUFFLER 4I/O 33.5LGX10.1D

Product Code: DFM100048

$659.06
Afterpay Logo
4 payments of $164.77
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

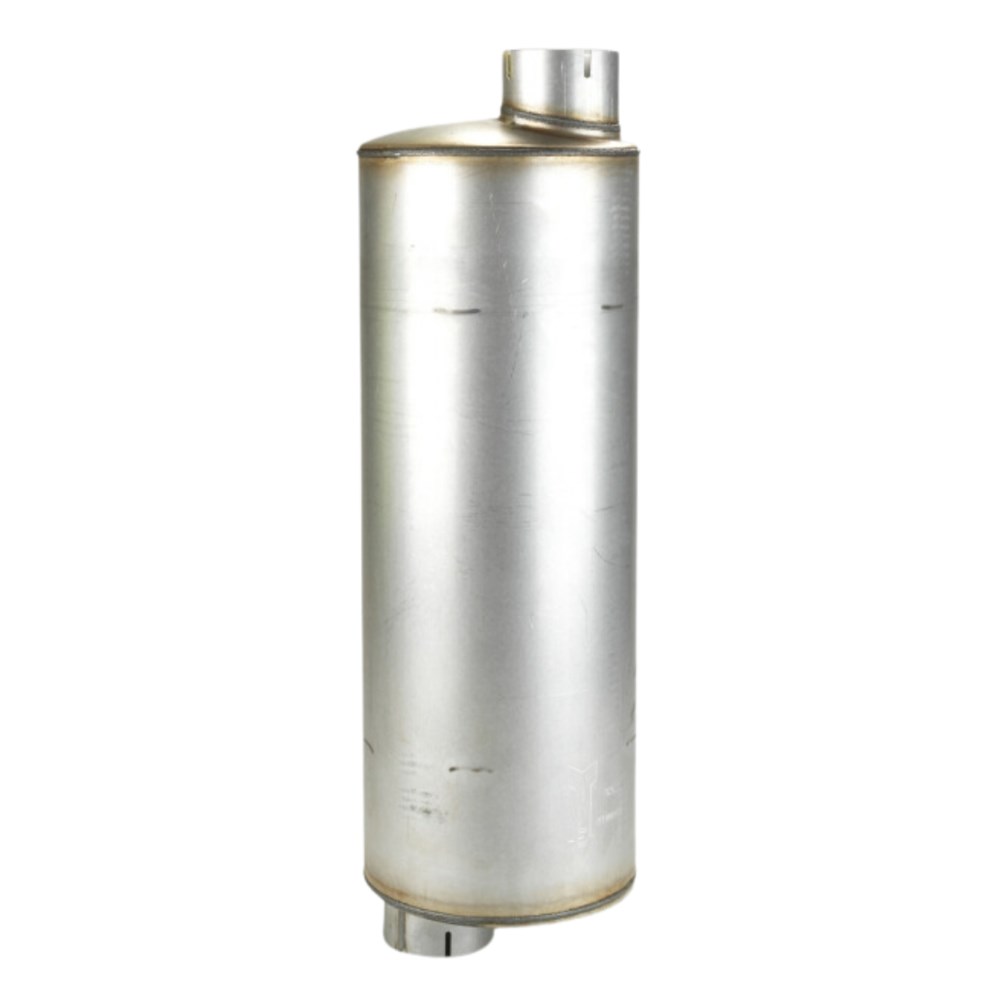

Donaldson Muffler, Round Style 2 - M100048.

Donaldson exhaust systems are original equipment on most pre-2007 medium- and heavy-duty trucks manufactured in North America. Donaldson engineers work with many OE truck and off-road equipment manufacturers to design and build quality exhaust systems to meet specific performance requirements.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Low Backpressure - Better fuel economy and efficient engine performance
Aluminized Steel - Delivers long service life and is corrosion resistant
Lightweight Construction - Minimizes stress and vibration on mounting system
Technical Specifications
Attenuation HR 20 dBA
Attenuation LR 15 dBA
Back Pressure High-Range 76 mm Hg (2.99 inch Hg)
Back Pressure Low-Range 25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range 51 mm Hg (2.01 inch Hg)
Body Diameter Maximum 256 mm (10.08 inch)
Body Length 688.8 mm (27.12 inch)
Brand Donaldson
Inlet Clock Position 0.25
Inlet Diameter 102.11 mm (4.02 inch)
Outlet Clock Position 0.5
Outlet Diameter 102.11 mm (4.02 inch)
Overall Length 650.9 mm (25.63 inch)
Rated Flow HR 48.2 m³/min (1702 cfm)
Rated Flow LR 27.8 m³/min (982 cfm)
Rated Flow MR 39.4 m³/min (1391 cfm)
Style Style 2
Available in Pack Quantity of
1
