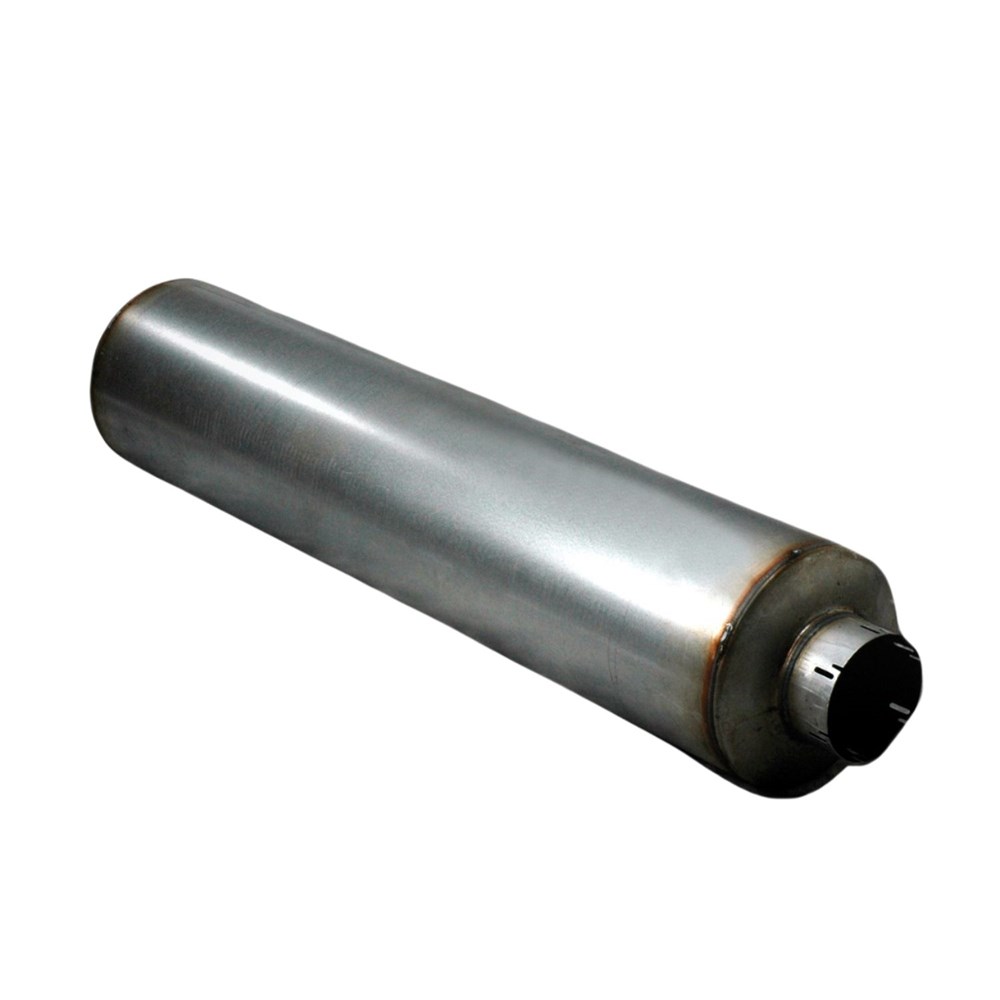

DONALDSON MUFFLER ROUND STYLE 1

Product Code: DFM100580

$496.68
Afterpay Logo
4 payments of $124.17
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
Donaldson Muffler, Round Style 1.

As a global leader in the filtration industry, Donaldson pride themselves on their innovative technologies and solutions, backed by a talented and dedicated team of employees.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Attenuation HR 25 dBA
Attenuation LR 19 dBA
Back Pressure High-Range 76 mm Hg (2.99 inch Hg)
Back Pressure Low-Range 25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range 51 mm Hg (2.01 inch Hg)
Body Diameter Maximum 256 mm (10.08 inch)
Body Length 1128.78 mm (44.44 inch)
Brand Donaldson
Inlet Diameter 127.64 mm (5.03 inch)
Outlet Diameter 127.64 mm (5.03 inch)
Overall Length 1295.4 mm (51.00 inch)
Rated Flow HR 71.6 m³/min (2529 cfm)
Rated Flow LR 44.3 m³/min (1564 cfm)
Rated Flow MR 62.7 m³/min (2214 cfm)
Size (mm) – Height 273
Size (mm) – Length 1353
Size (mm) – Width 271
Style Style 1
Weight (kg) 13.566
Available in Pack Quantity of
1
