DONALDSON LUBE FILTER SPIN-ON F/FLOW

Product Code: DFP502039

$23.13
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

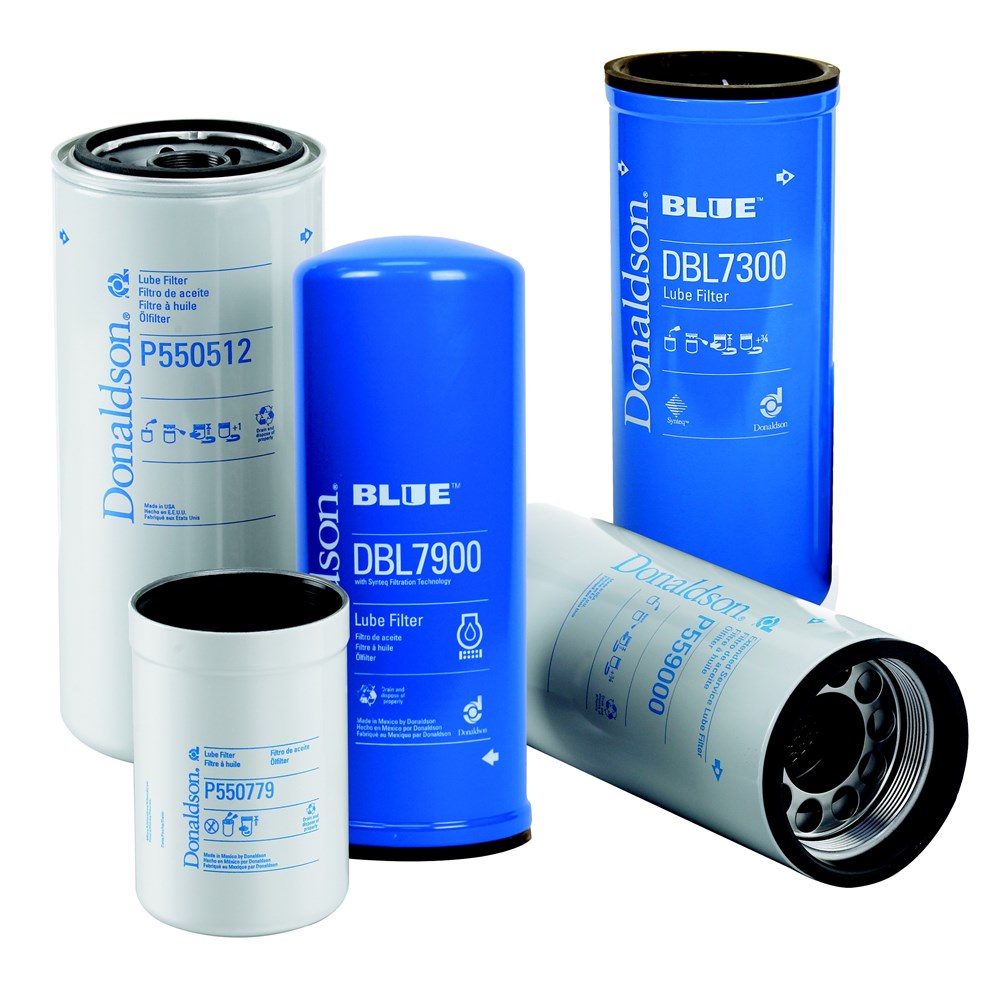

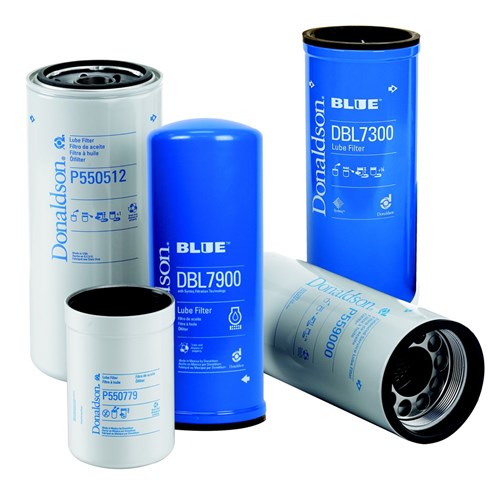

Donaldson Lube Filter, Spin-On Full Flow - P502039.

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Keep oil clean by capturing contaminants that cause engine damage
Include heavy duty components that are built to perform, built to last
Deliver essential engine protection for maximum cold flow performance
Technical Specifications
Anti-Drainback Valve Yes
Brand Donaldson
Bypass Valve Yes
Bypass Valve Setting HR 1.3 bar (19 psi)
Bypass Valve Setting LR 0.9 bar (13 psi)
Collapse Burst 6.9 bar (100 psi)
Efficiency 50% 15 micron
Efficiency 95% 30 micron
Efficiency 99% 40 micron
Efficiency Beta 75 35 micron
Efficiency Test Std JIS D 1611
Gasket ID 76 mm (2.99 inch)
Gasket OD 86 mm (3.39 inch)
Length 100 mm (3.94 inch)
Media Type Cellulose
Outer Diameter 90 mm (3.54 inch)
Primary Application ISUZU 8944309830
Size (mm) – Height 117
Size (mm) – Length 104
Size (mm) – Width 104
Style Spin-On
Thread Size M20 x 1.5
Type Full-Flow
Weight (kg) 0.572
Available in Pack Quantity of
1
