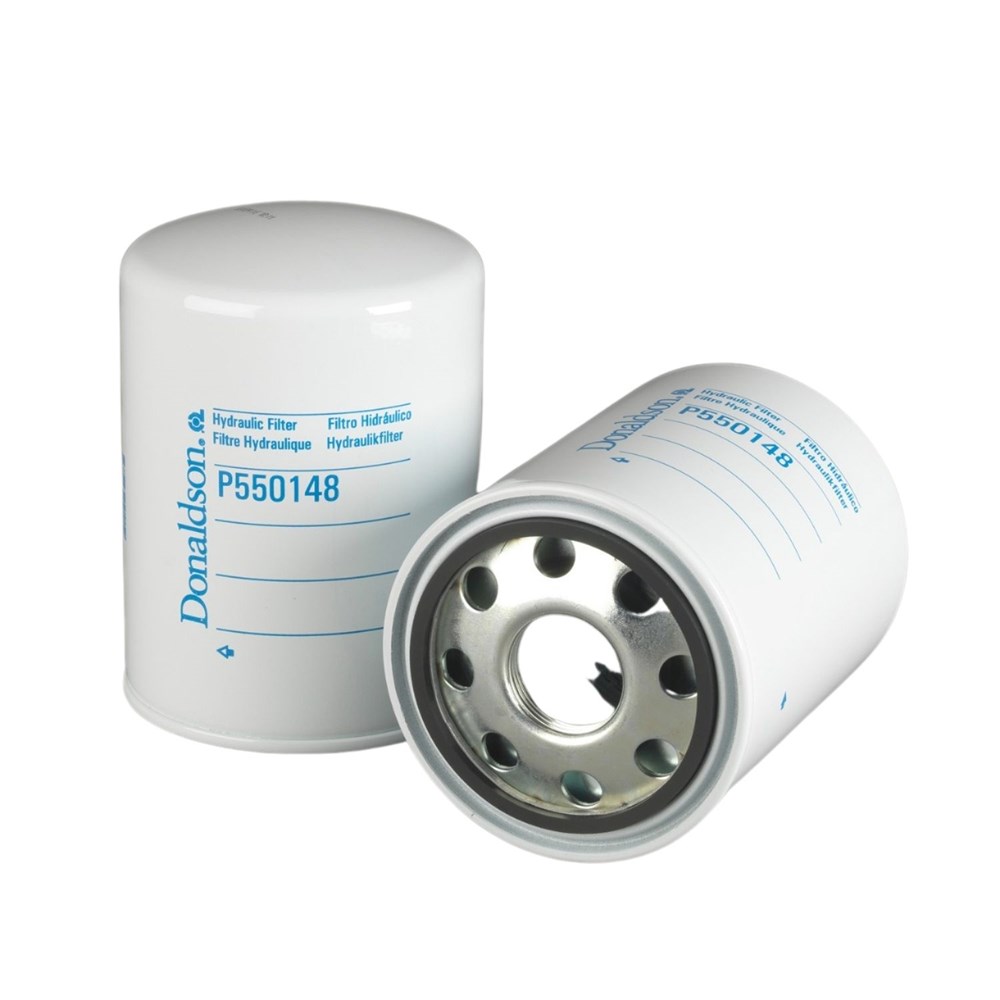

DONALDSON HYDRAULIC FILTER SPIN-ON

Product Code: DFP550148

$49.12
Afterpay Logo
4 payments of $12.28
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
Donaldson Hydraulic Filter, Spin-On - P550148.

Low pressure filters are the most commonly used type of filter in hydraulic circuits, used most often in return line applications. Donaldson low pressure filters are rated for working pressures up to 350 psi (2400 kPa). In-tank and in-line configurations are available to accommodate virtually any application.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Brand Donaldson
Collapse Burst 6.9 bar (100 psi)
Efficiency Beta 1000 36 micron
Efficiency Beta 2 10 micron
Efficiency Beta 200 32 micron
Efficiency Test Std ISO 16889
Gasket ID 97 mm (3.82 inch)
Gasket OD 106.8 mm (4.20 inch)
Length 180.2 mm (7.09 inch)
Media Type Cellulose
Outer Diameter 128.9 mm (5.07 inch)
Primary Application UCC HYDRAULICS MX1591410
Size (mm) – Height 210
Size (mm) – Length 150
Size (mm) – Width 150
Style Spin-On
Thread Size 1 1/4 BSP/G
Weight (kg) 1.27
Available in Pack Quantity of
1
