TRIBOGUARD DT0110D14UM

Product Code: DFP566660

$162.47
Afterpay Logo
4 payments of $40.62
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

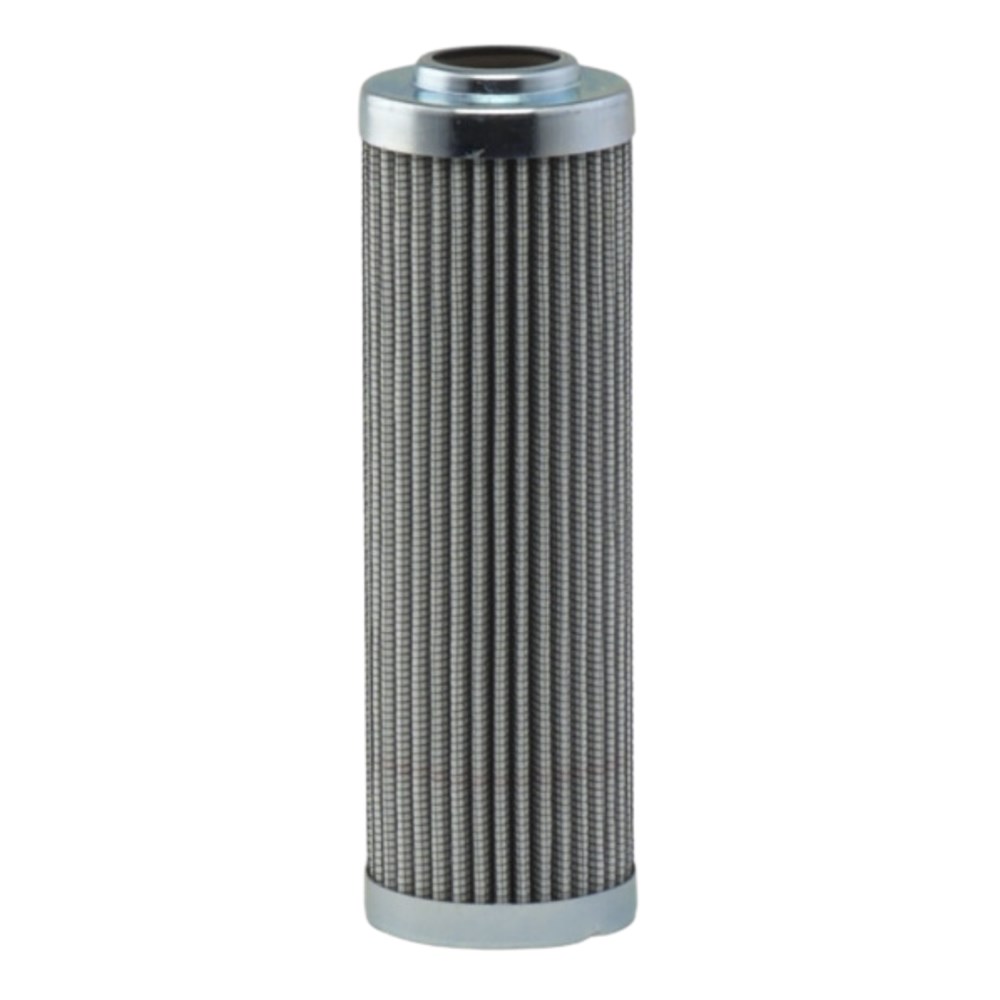

Doanldson Hydraulic Filter, Cartridge DT - P566660.

Every hydraulic system has suspended particles in its fluid. Contaminants grind and wear at the surface of moving parts, introducing even more particles into the system. These contaminants cause more than 70% of system downtime.

High-performance DT cartridge filters provide better protection from particles and contaminant that reduce the effectiveness of lubricant and hydraulic fluid. Using Donaldson Synteq™ media technology, they deliver extended filter life, allow higher initial cleanliness and provide superior system protection.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Epoxy-Coated Steel Support Mesh (Upstream and Downstream Sides)
Media Support Layers (Upstream and Downstream Sides)
Optimises media support
Protects media during pressure surges
Synteq™ Media technology
Technical Specifications
Brand Donaldson
Brand DT High-Performance
Collapse Burst 31 bar (450 psi)
Efficiency Beta 1000 12 micron
Inner Diameter 22.2 mm (0.87 inch)
Media Type Synthetic
Outer Diameter 47.75 mm (1.88 inch)
Overall Length 152.7 mm (6.01 inch)
Seal Material Viton
Style Cartridge
Available in Pack Quantity of
1
