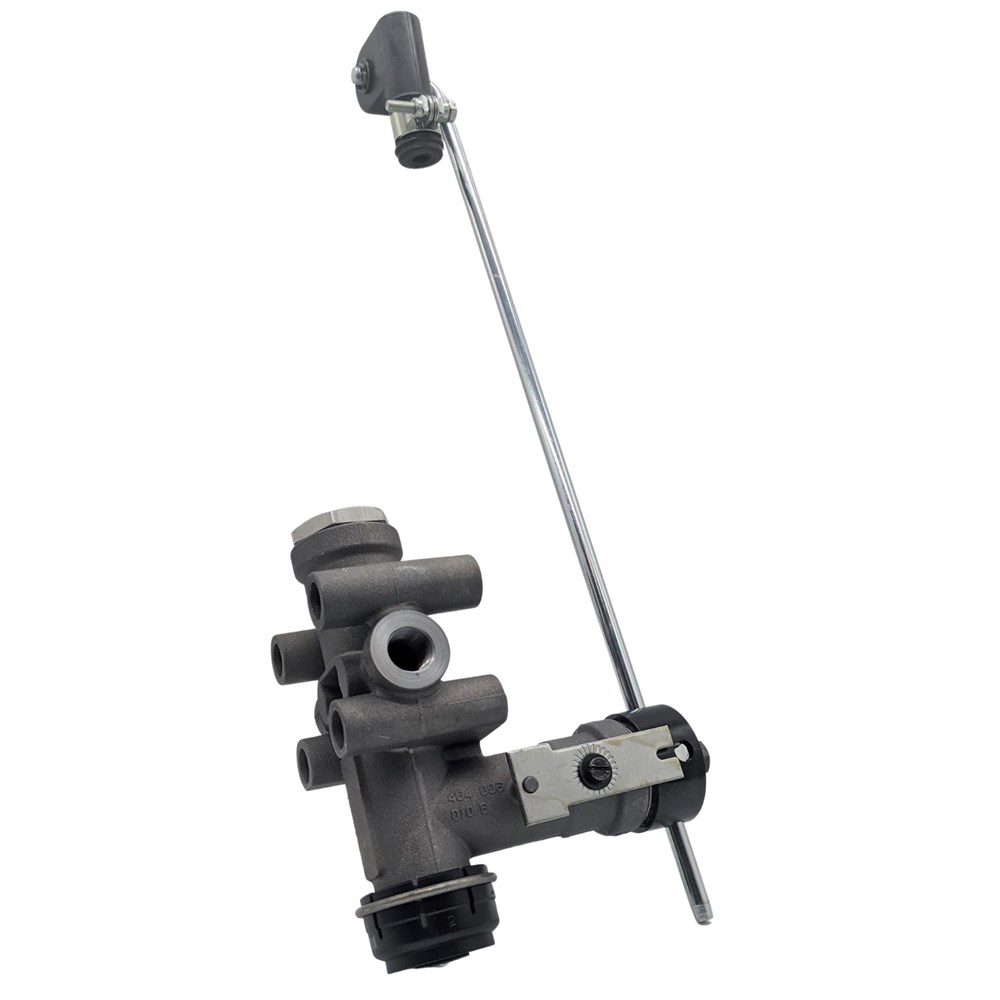

WABCO HEIGHT CONTROL VALVE HCV

Product Code: WAB4640060030

$210.89
Afterpay Logo
4 payments of $52.72
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
Wabco Height Control Valve.

WABCO is a leading global supplier of technologies that improve the safety, efficiency and connectivity of commercial vehicles.
  • Key Features
  • Specifications
  • Documents
  • Warranty
1/4" Supply Port
1/4" Delivery Port (21)
1/4" Delivery Port (22)
Actuation Angle 90 degree
Maximum operating pressure 13 bar
Technical Specifications
Actuation Ø 6 x 313 mm
Actuation angle 90 Degrees
Brand WABCO Original
Calculated Volume (dm³) 2.7663
Distance between holes 50.0/40.0 mm
Max. operating pressure 13.0 bar
Mounting 4x Ø 8.8 mm
Multi nominal diameter (from port 1 to x) 2x Ø3.0 mm
Port thread 1 1/4 - 18 NPTF
Port thread 21 1/4 - 18 NPTF
Port thread 22 1/4 - 18 NPTF
Port thread 3 Silencer
Side of mounting 4-sided
Size (mm x mm x mm) 322 x 121 x 71
Temperature range -40°C to +80°C
Type 2-circuit
Version With Lever
Weight (kg) 0.416
Available in Pack Quantity of
1
