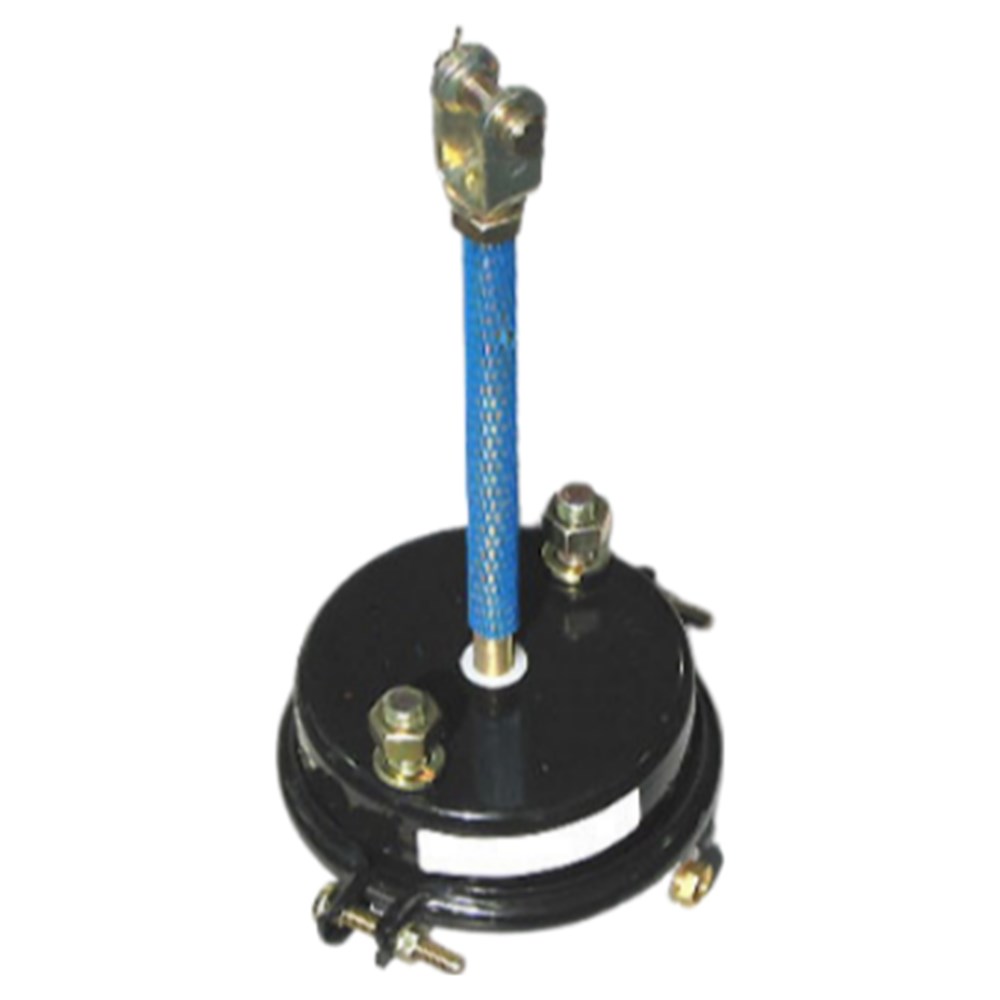

TYPE 20 BRAKE BOOSTER

Product Code: AB1180

$87.76
Afterpay Logo
4 payments of $21.94
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
The structure of the service chamber is diaphragm type, which uses a single diaphragm to drive mechanical force. It converts the air pressure output by the foot brake valve into mechanical thrust to push the brake, so that the front axle of the vehicle generates braking torque.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Clamp & Inlet Port Angle 90°
Diameter 178
Height 178
Inlet Port 3/8" NPT
Length 113
Mounting Bolt Centre Distance 120.7
Mounting Bolt Length 43
Push Rod Length 270
Stroke 54
Type 20
Width 178
Available in Pack Quantity of
1
1 Year Warranty
