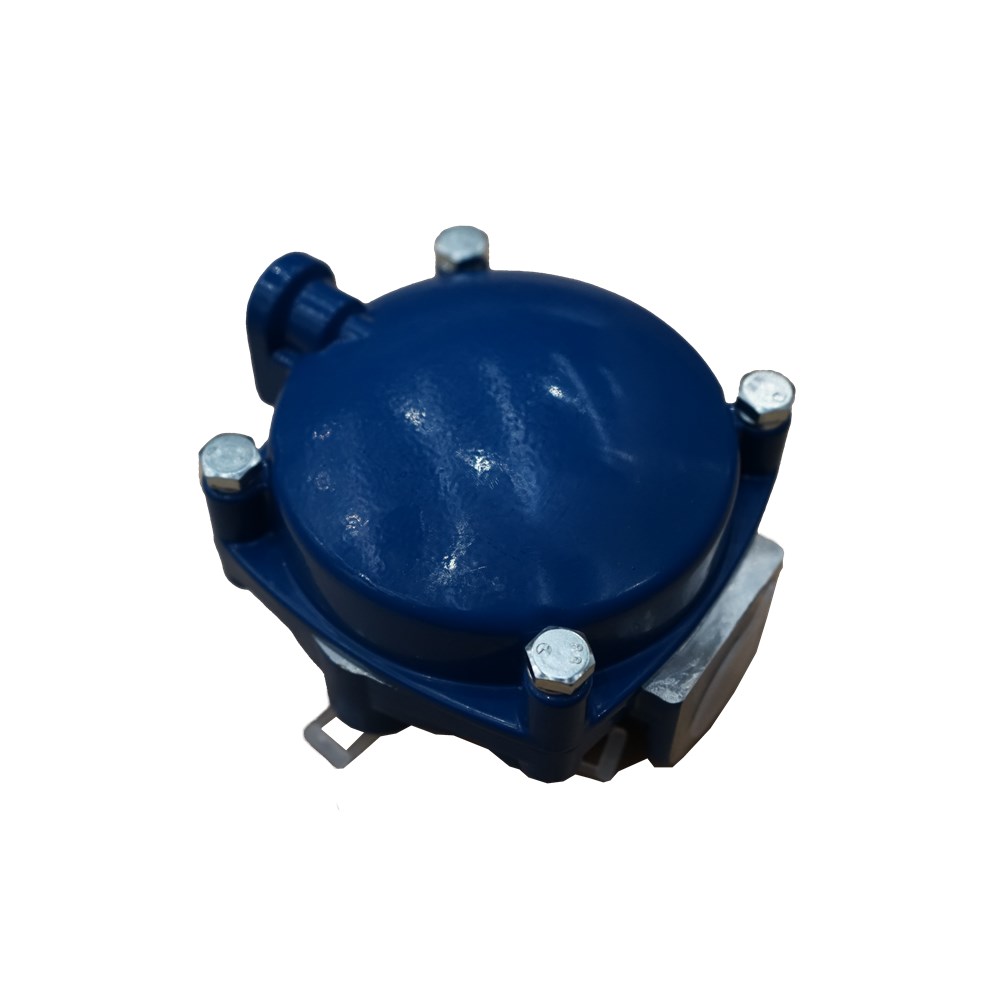

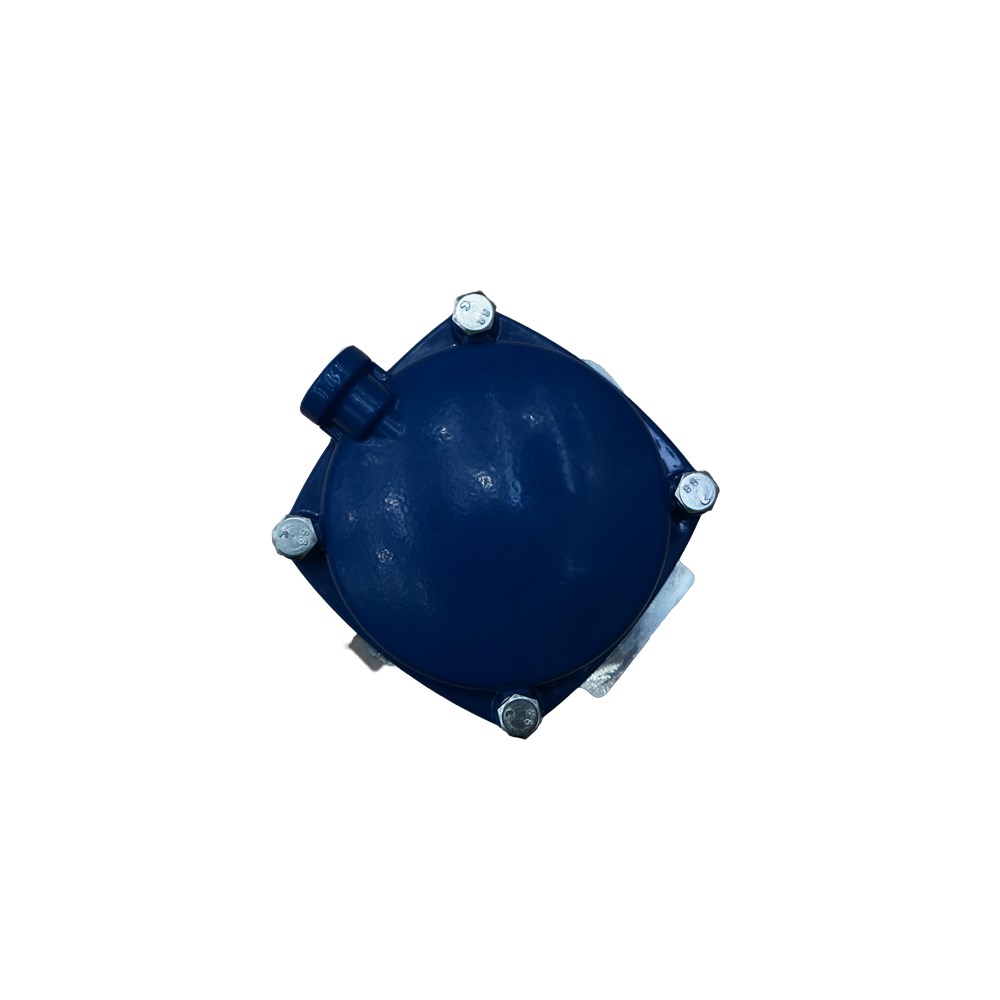

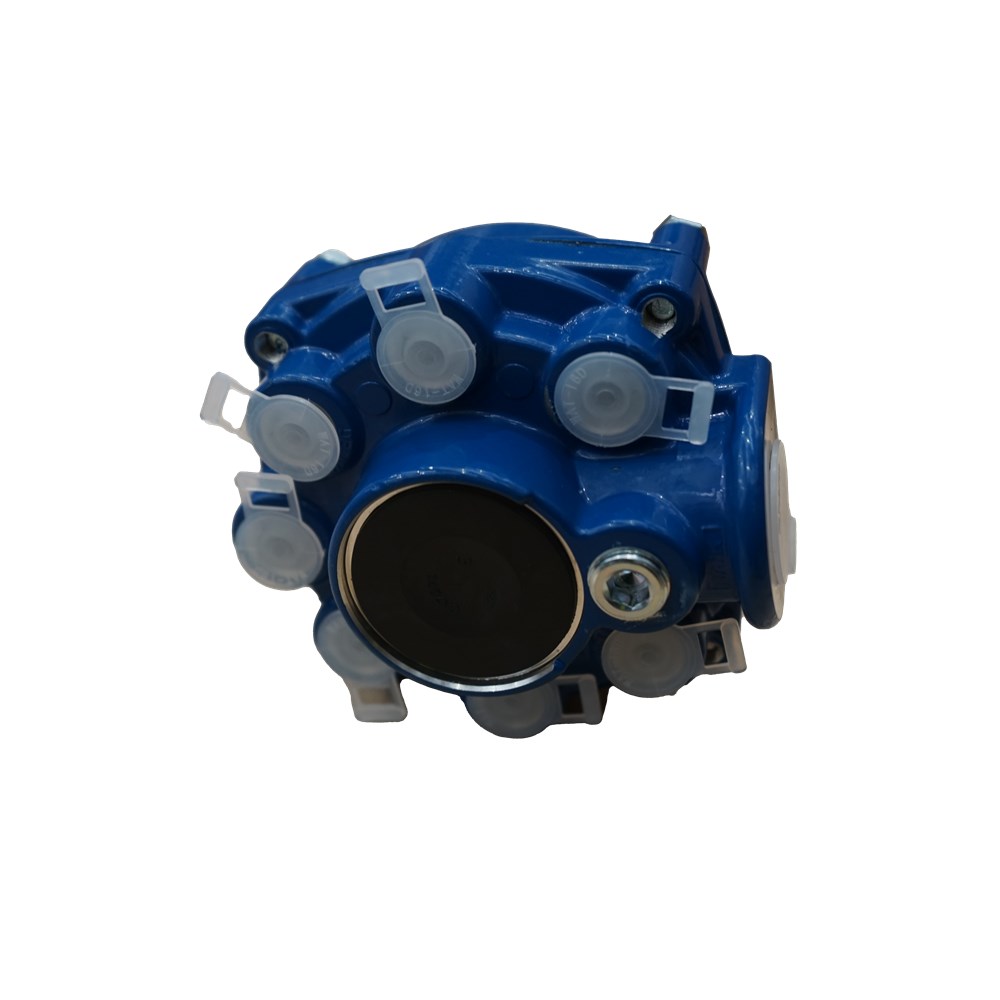

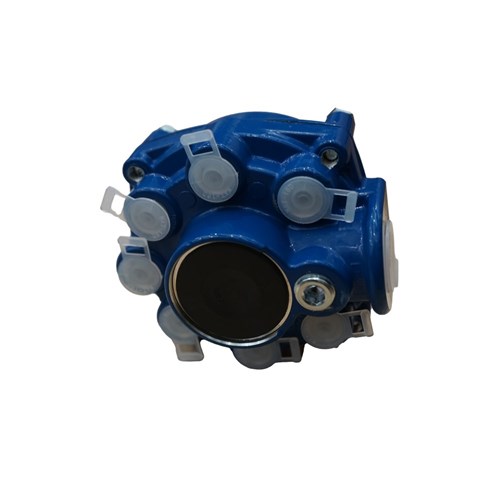

CA700 RELAY VALVE 6 PORT

Product Code: AB8471

$187.75
Afterpay Logo
4 payments of $46.94
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
The advantage of CA700 over standard relay valves: This unique valve provides virtually instantaneous system “take-up” to provide near optimum braking times between the prime mover and trailer. This is achieved by minimising the time for the valve to reach its balanced state through controlling pressure differences across the relay piston surfaces.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Pressure predominance - provides rapid system ‘take-up’ by amplifying foot valve pressures
Provides brake “balance” between truck and trailer during low pressure brake applications
Assists in even and improved brake lining life
Easy overhaul
ADR38/02 compliant
Technical Specifications
Delivery Ports 3/8" NPT
Height 120mm
Length 190mm
Ports 6
Supply Port 1/4" NPT
Tank Mount 3/4" NPT
Width 160mm
Available in Pack Quantity of
1
1 Year Warranty
