  • ABS MODULATOR VALVE

ABS MODULATOR VALVE

Product Code: BENK128914OR

$1,112.57
Afterpay Logo
4 payments of $278.14
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

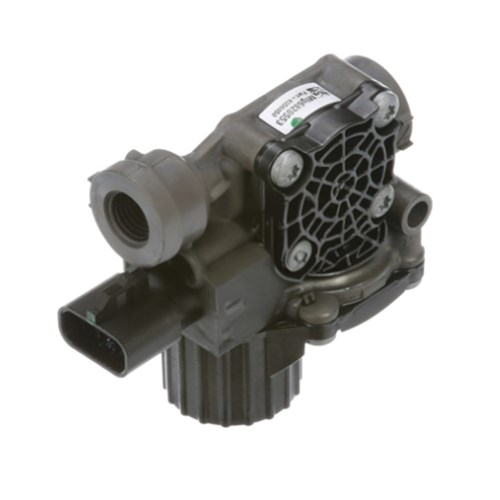

Bendix M-40HF, ABS Modulator Valve - K128914OR.

The Bendix® M-40QR™ (quick release) and M-40HF™ (high flow) pressure modulator valves (PMVs) are high-capacity, on/off air valves that incorporate a pair of electrical solenoids for control. The solenoids provide the electro-pneumatic interface between the vehicle’s electronic control system and the air brake system.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Brand Bendix
Current (Nominal) 4.6 A
Duty Cycle 15 sec / 5 min
Exhaust Port Dust Shield
Height 105mm
Length 110mm
Maximum Operating Pressure 150 PSI
Maximum Operating Temperature 185 °F (85 °C)
Maximum Solenoid "On" Time 150 sec
Minimum Operating Temperature -40 °F (-40 °C)
Modulator Type HF (High Flow)
Mounting 0.335in (2x)
Supply Port 1/2-14 NPT
Voltage (Nominal) 12 Volts
Width 61mm
Available in Pack Quantity of
1
