ALEMLUBE DIAPH PUMP 1" ALUM

Product Code: ALDP70025

$2,105.11
Afterpay Logo
Unavailable for this order
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

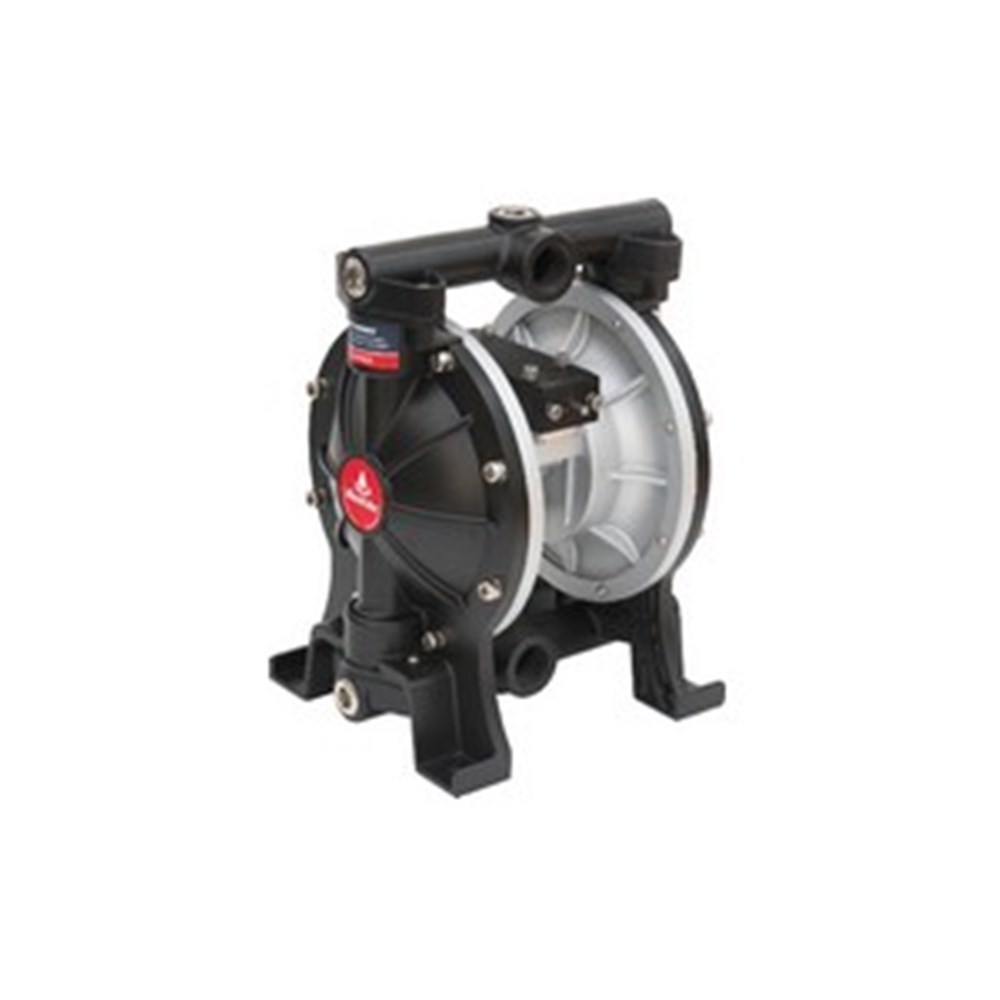

DP70025 EL Series 1” Air Operated Diaphragm Pump. 1” BSP(f) fluid inlet/outlet and 3/8” BSP(f) air inlet. Aluminium body and ball cover.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Flow rates of up to 180L/min
Maximum working pressure of 120psi (8bar)
Maximum delivery per cycle of 450mL
Maximum air consumption of 1,200L/min
Maximum solid diameter of 3mm
Technical Specifications
Brand Alemlube
Diameter 228mm
Height 348.5mm
Width 260mm
Available in Pack Quantity of
1
