AXLE ASSY MAXUS 10/285 TN IRON PRESET+

Product Code: AP0255MG730

$2,865.91
Afterpay Logo
Unavailable for this order
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

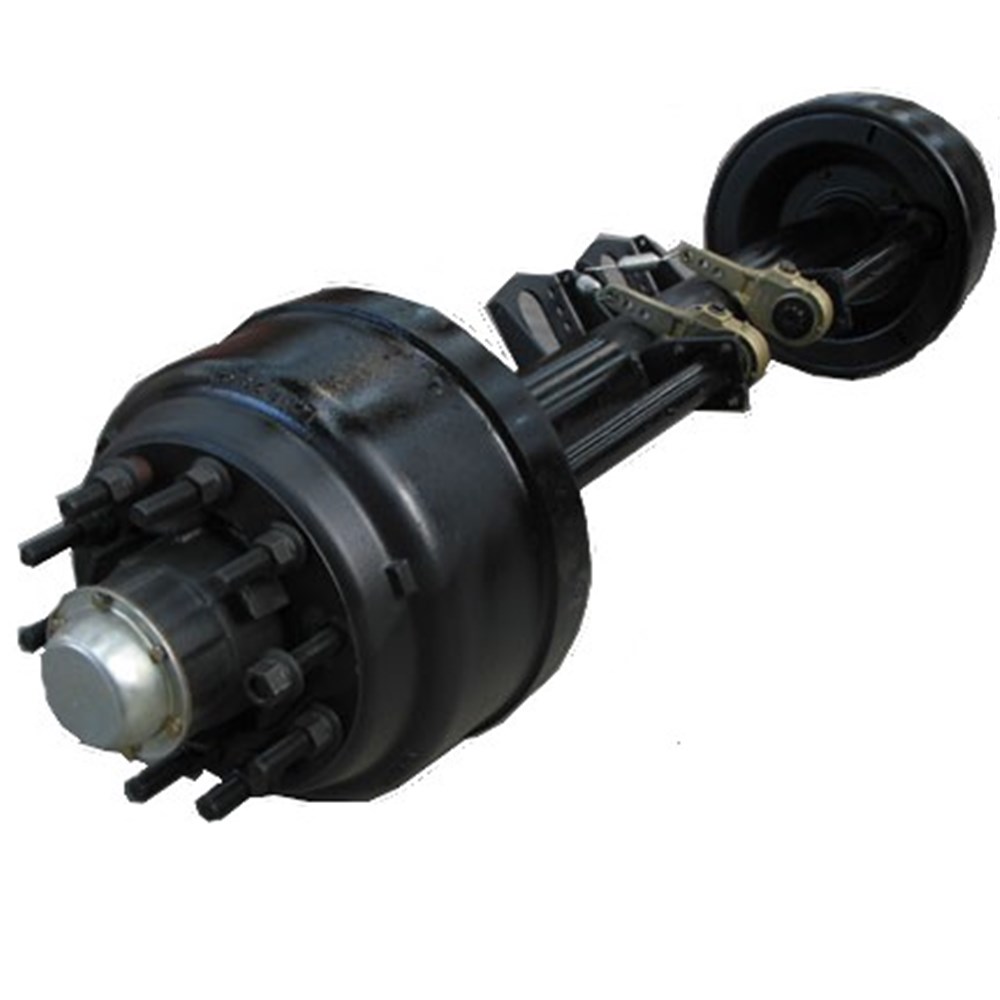

MAXUS Axle Assemly. 10 stud 285 PCD. Iron preset hubs, cast drums and tapered spindle. 73 inch track and 6 inch tube.

MAXUS Axles are manufactured to strict quaility standards.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Axle Diameter (mm) 127
Bearing Type HM212049/011 - HM218248/210
Brake Size (Inches) 16.5" x7"
Colour Black
Height (mm) 470
Hub Type (Spoke/Stud/PCD) 220/10-M22x1.5/285.75
Length (mm) 2239
Track (mm) 1854
Wall Thickness (mm) 16
Width (mm) 470
Available in Pack Quantity of
1
