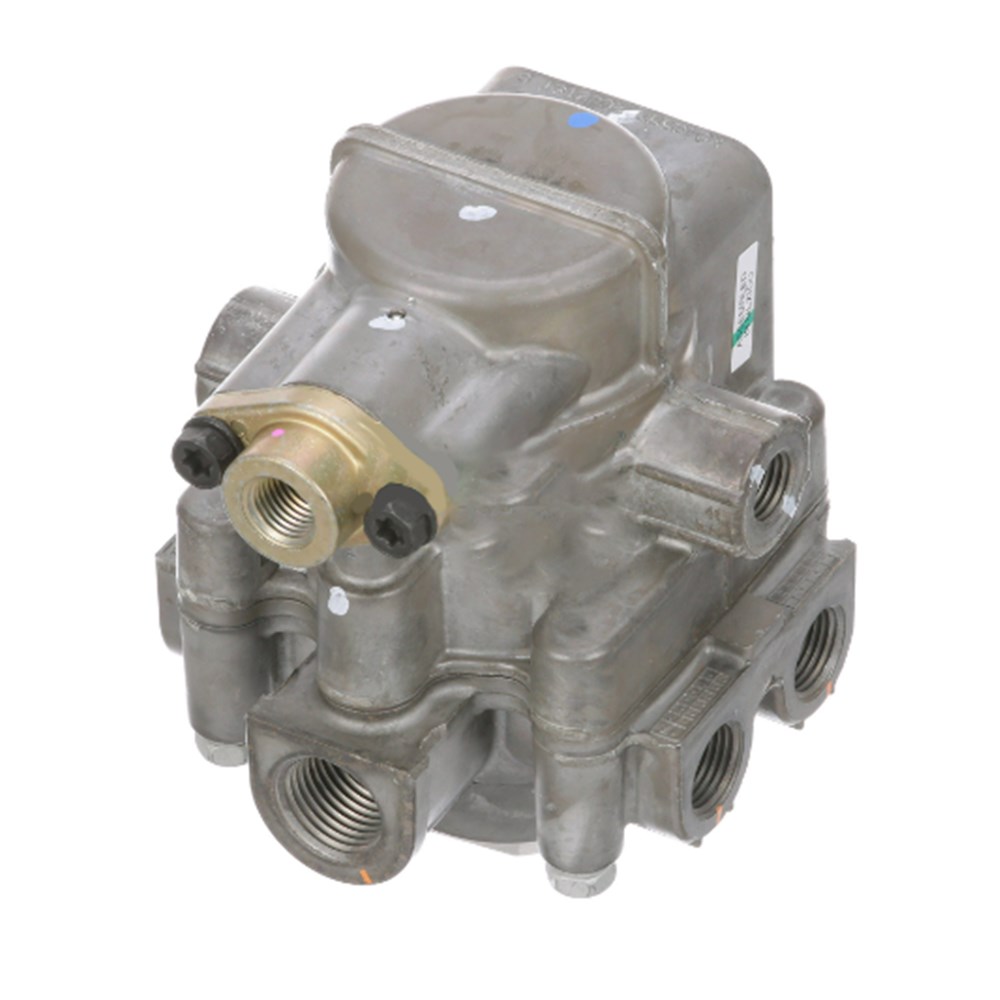

SR7 SPRING BRAKE VALVE

Product Code: BENK048634

$1,010.36
Afterpay Logo
4 payments of $252.59
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
Bendix SR-7 Spring Brake Valve - K048634.

The Bendix® SR-7™ spring brake modulating valve is used in conjunction with a dual air brake system and spring brake actuator and performs the following functions:

1. Provides a rapid application of the spring brake actuator when parking.

2. Modulates the spring brake actuator application using the dual brake valve should a primary failure occur in the service brake system.

3. Prevents compounding of service and spring forces.

The valve has one park control, one service control, one supply, one balance, four delivery NPTF ports, and an exhaust port protected by an exhaust diaphragm. The valve incorporates two mounting studs for mounting the valve to the frame rail or cross member (where applicable).
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Anti-Compounding Yes
Balance Port 1/4-18 NPT
Brand Bendix
Control Port 1/4-18 NPT
Delivery Port 1 3/8-18 NPT
Delivery Port 2 3/8-18 NPT
Delivery Port 3 3/8-18 NPT
Delivery Port 4 3/8-18 NPT
Exhaust Orientation Exhaust Facing Down
Exhaust Port 1/2-14 NPT
Maximum Operating Temperature 200 °F (93 °C)
Minimum Operating Temperature -40 °F (-40 °C)
Mounting 3/8-16 UNC-3B (2x)
Park Control Port 1/4-18 NPT
Regulatory Compliance FMVSS 121
Spring Brake Hold-Off Pressure 107 PSI
Supply Port 1/2-14 NPT
Available in Pack Quantity of
1
