DONALDSON SP50/60 80/90 HYD SPIN 10UM XL

Product Code: DFP165876

$108.43
Afterpay Logo
4 payments of $27.11
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

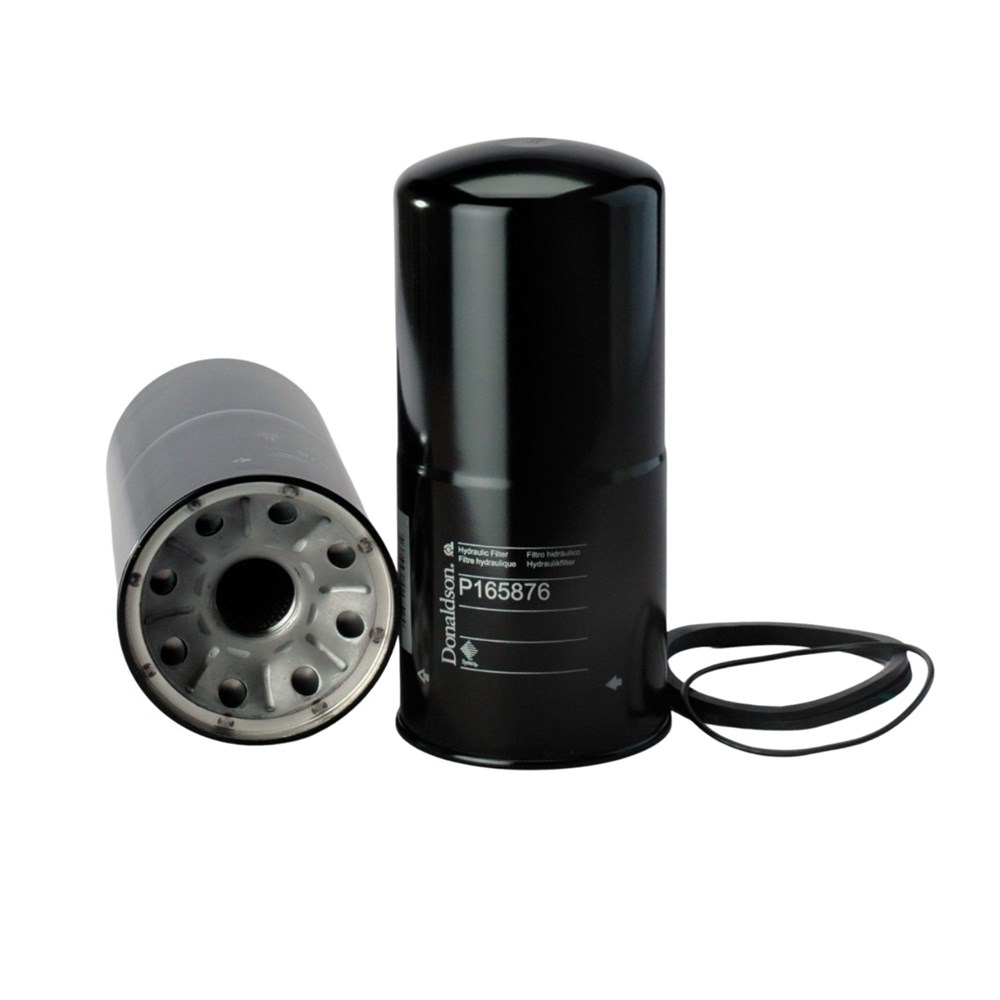

Donaldson Hydraulic Filter, Spin-On - P165876.

Low pressure filters are the most commonly used type of filter in hydraulic circuits, used most often in return line applications. Donaldson low pressure filters are rated for working pressures up to 350 psi (2400 kPa). In-tank and in-line configurations are available to accommodate virtually any application.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Brand Donaldson
Efficiency Beta 1000 11 micron
Gasket ID 120.9 mm (4.76 inch)
Gasket OD 128 mm (5.04 inch)
Length 270.7 mm (10.66 inch)
Media Type Synthetic
Outer Diameter 129 mm (5.08 inch)
Primary Application PALL HC7500SUS8H
Series W023, HBK05, SP50/60, SP80/90, SP100/120
Size (mm) – Height 290
Size (mm) – Length 140
Size (mm) – Width 137
Style Spin-On
Thread Size 1 1/2-16 UN
Weight (kg) 1.403
Available in Pack Quantity of
1
