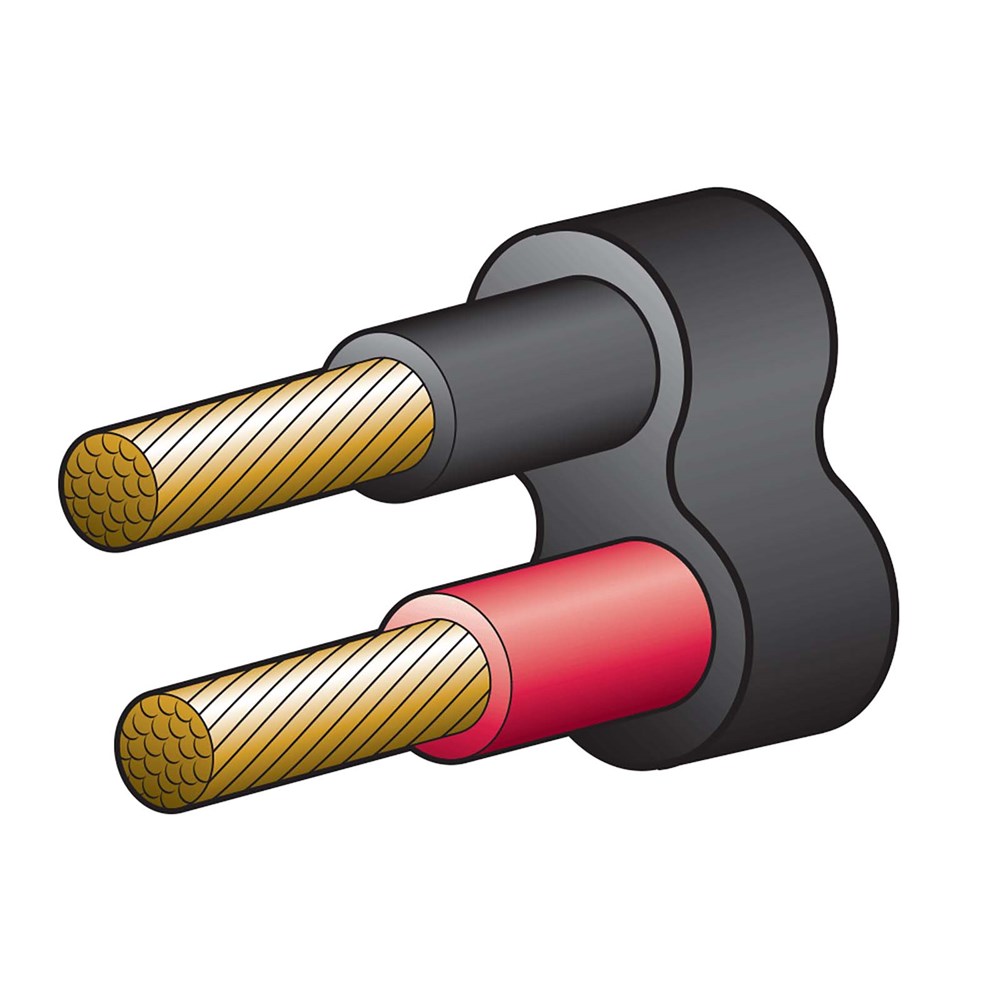

NARVA 100A 8B&S TWIN CORE BATT CABLE 30M

Product Code: ELN580830TW

$310.65
Afterpay Logo
4 payments of $77.66
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
All cables are manufactured using oxygen free copper and RoHS compliant polyvinyl-chloride (V90 PVC) insulation in accordance with Australian and New Zealand Standard AS/NZS 3808. The Marine cable features the added benefit of tin coated copper strands for increased corrosion resistance. All Narva double insulated welding cables are made for the Australian and New Zealand markets to AS5000.1 and exceed the specification requirements of standard AS1995. The inner insulation is manufactured of V90HT nitrile modified PVC for resistance up to 90oC. Cable of this specification is often used to make heavy-duty battery booster cables because of the flexibility of the special nitrile modified sheath and 0.2mm stranding. Nitrile modified PVC is very durable, doesn’t kink and has a high resistance to heat, abrasion and cuts. When used as battery booster cable the lower duty cycle and higher amps is a more appropriate reference.
  • Key Features
  • Specifications
  • Documents
  • Warranty
50m of Red/Black (black sheath) cable
Technical Specifications
Amperage Rating 100 (Rating based on a 60% duty cycle for 5 mins)
B&S (AWG) 8 B&S
Brand Narva
Colour Red/Black, black sheath
Conductor Cross Section (mm²) 8
Length 30m
Number of Cores 2
Strand (No./Dia.) 96/0.32
Available in Pack Quantity of
1
