GATES 1-1/2" ID PLANT MASTER XTREME HOSE

Product Code: GAT32050055

$87.28
Afterpay Logo
4 payments of $21.82
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

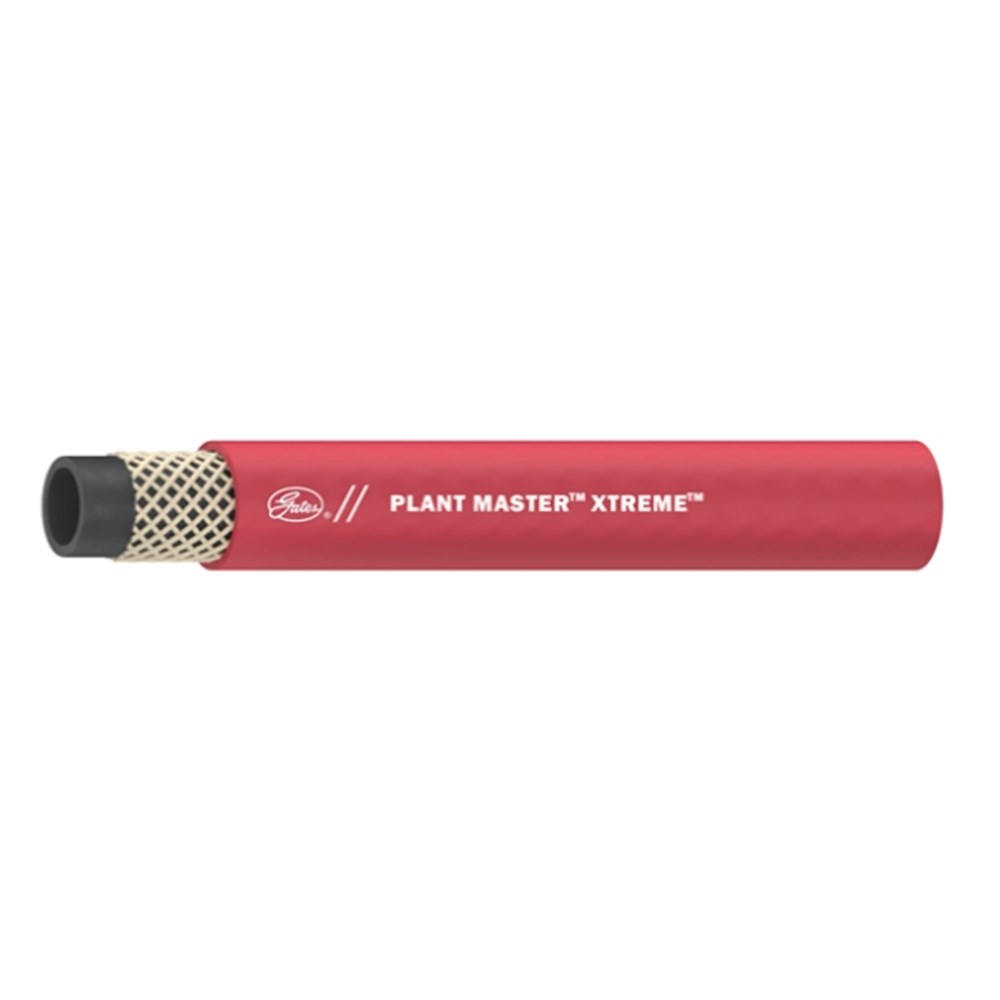

The Plant Master® Xtreme™ 300 Lock-On Braid hose is recommended for petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air.

CAUTION: Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Temperature Range: -40°C to +100°C (-40°F to +212°F) continuous service
Excellent resistance to weather and ozone
Working pressure: 1.72 Mpa
R > 10^6 Ohm, Storage may adversely affect electrical resistance
Tube: High oil resistance
Technical Specifications
Colour Red
Cover Modified Nitrile - Type C2
Hose Inside Diameter (mm) 38.1
Hose Outside Diameter (mm) 50.8
Inside Diameter (mm) 38
Max. Working Pressure 250
Min. Burst Pressure (psi) 1000
Minimum Bend Radius (mm) 305
Temperature Range -40°C to +100°C
Tube Nitrile - Type C
Available in Pack Quantity of
1
