TRUCK SEAT MECHANICA

Product Code: TZETS007

$1,576.50
Afterpay Logo
4 payments of $394.13
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

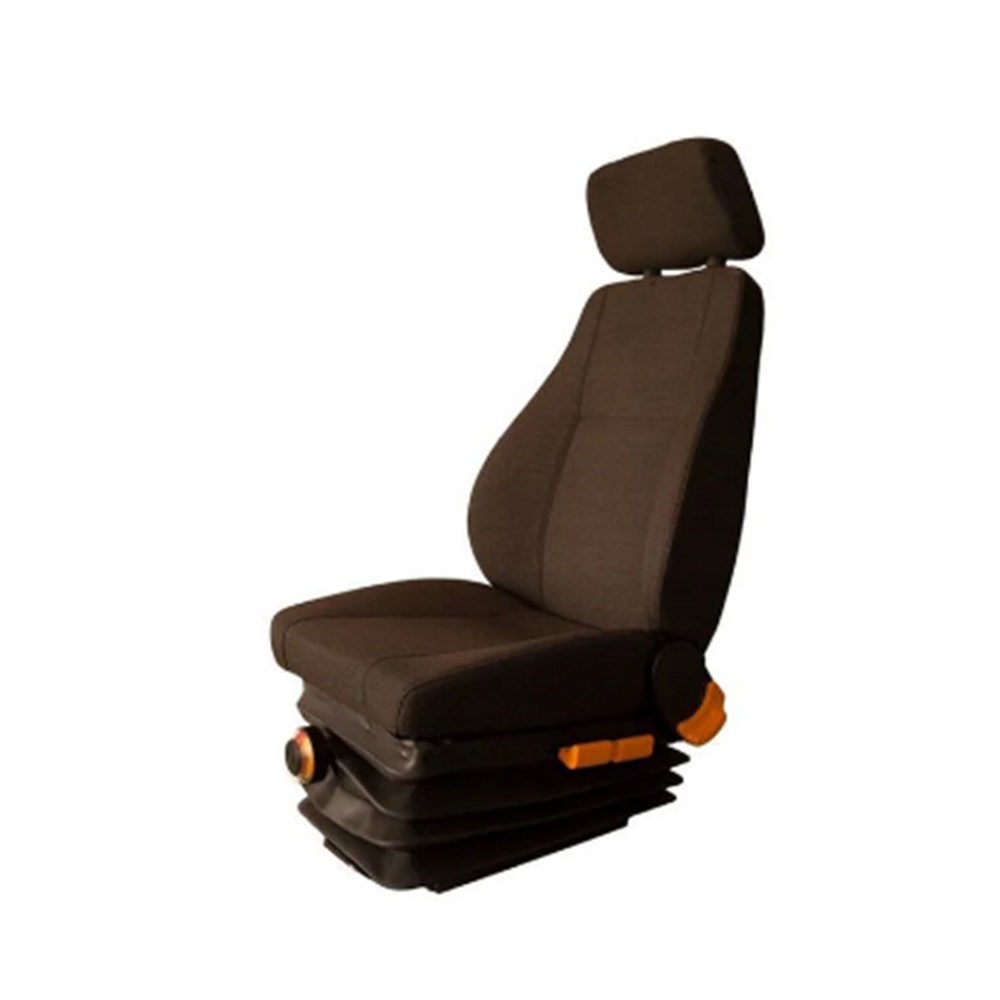

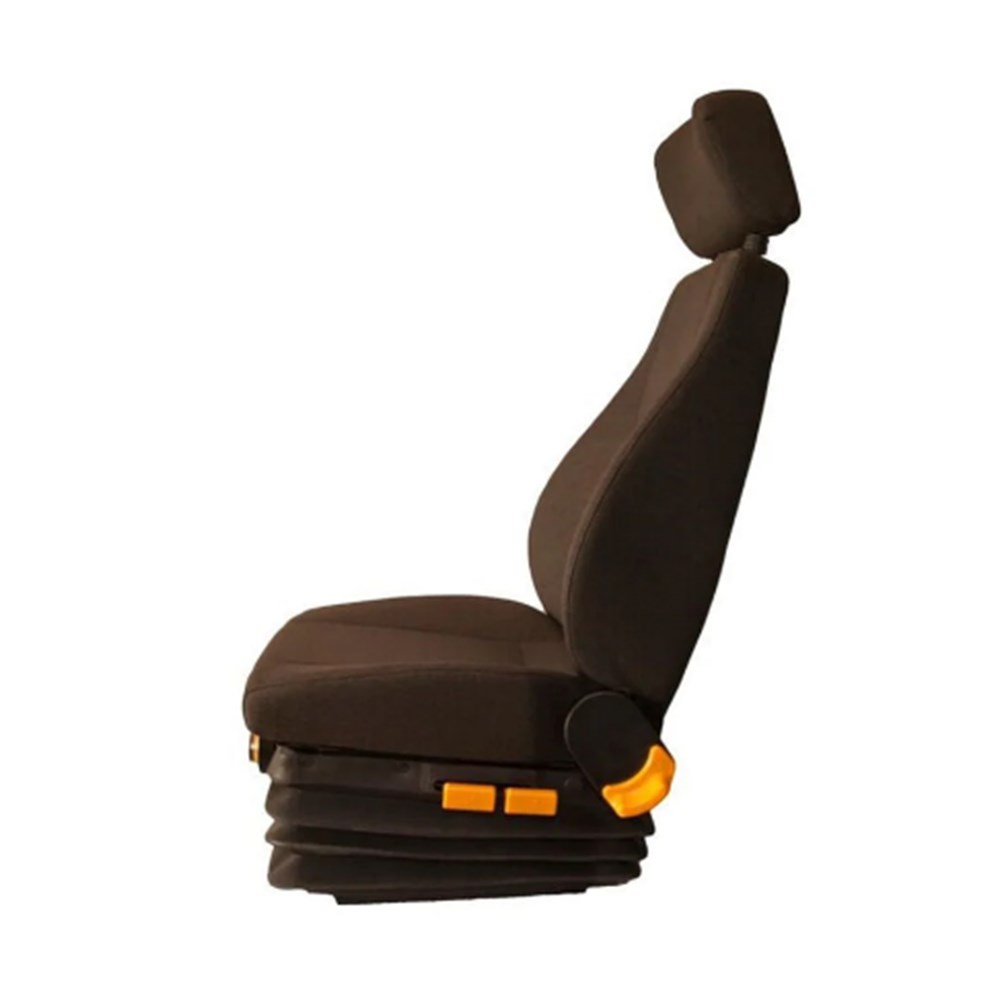

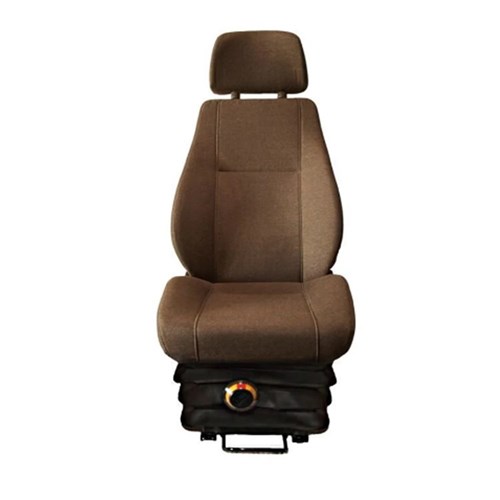

Right Truck Seat Mechanical Suspension - ETS007.

This seat will exceed your comfort expectations (Free Adjustable Headrest).

• Horizontal adjustment: double locking, operating elements front , stroke 160mm (10mm × 16)

• Height / rake adjustment: operating elements left, in fine increments up to 60mm, rake adjustable, ±12°

• Weight adjustment: operating elements left, stroke 40 to 130Kg

• Seat cushion depth adjustment: operating elements right, stroke 60mm (15mm × 4)

• Backrest adjustment: operating elements left, adjust range 80° + 41°6

• Head restraint adjustment: adjust range 75mm (25mm × 3)

• Mechanical suspension function: stroke ±30mm

• Seat size: (length x height x width) 555 × 1080 × 500mm

• Seat cushion height (work state) 270, seat cushion width 485, seat cushion depth 465

• Backrest height: 630, backrest width: 480

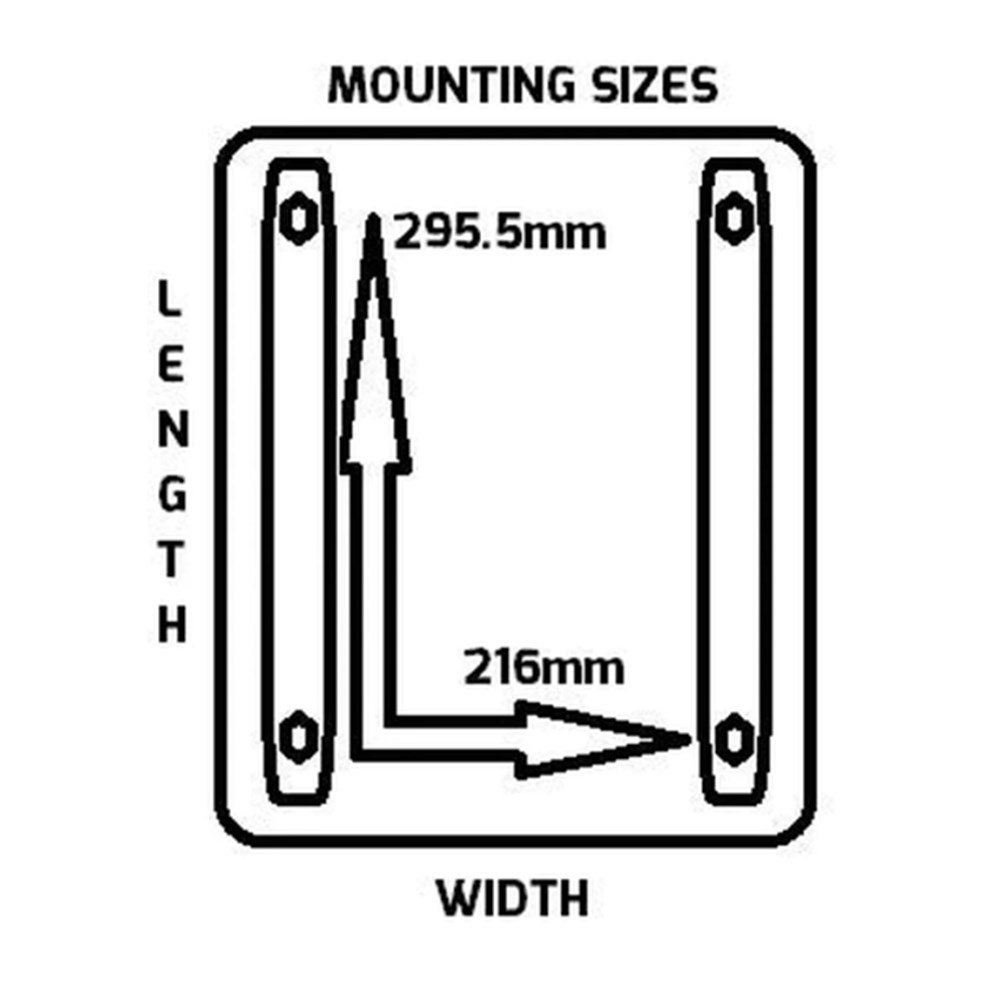

• Mounting size (L/R × F/B) 216 × 295.5
  • Key Features
  • Specifications
  • Documents
  • Warranty
Vertical locking adjustment
Adjustable Backrest Angle

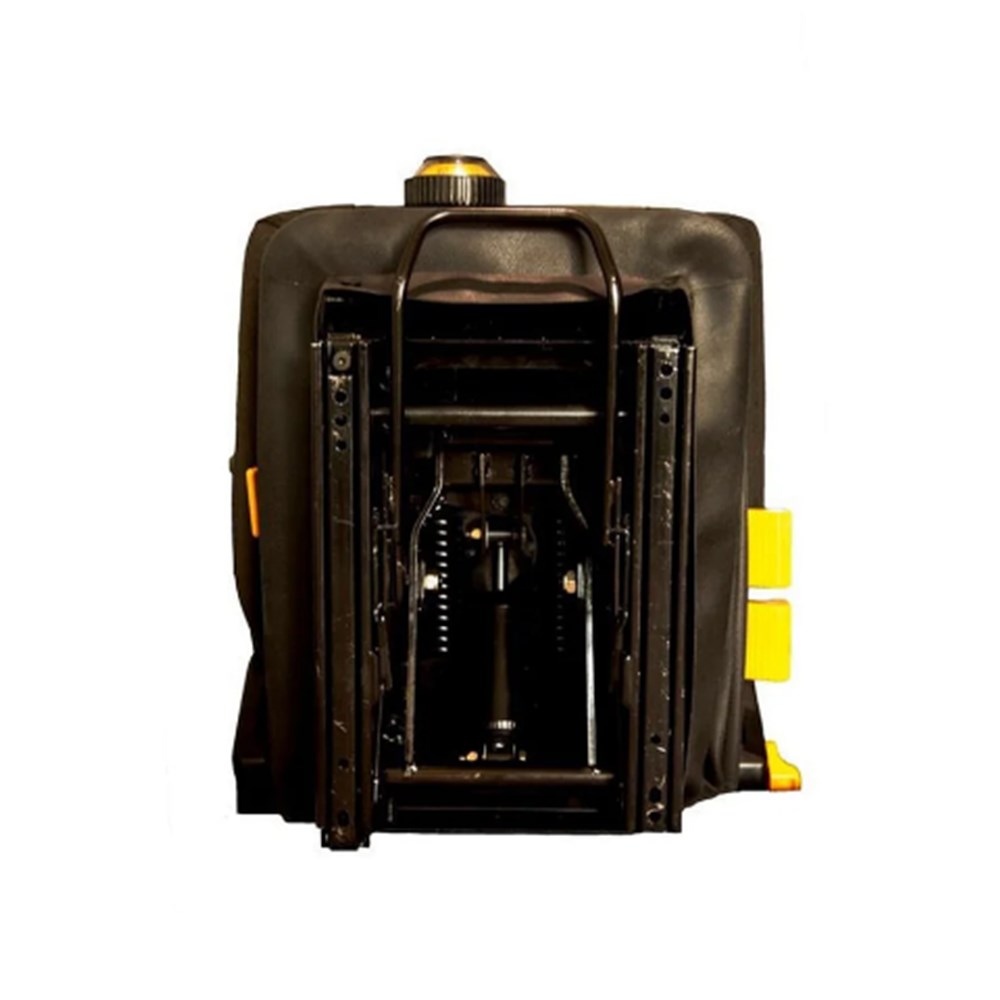

All Seats come with Sliding Rails Attached

This part is suitable for the following vehicles:

Brand Make Model Description Qty Fitting Position Fitting Notes Category
HINO TRUCK FB4J RANGER 4 10/1998-2003 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FC3J RANGER 5 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FC3W MERLIN 1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FC4J RANGER PRO 5 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FD16*L 1986-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FD17*K 1981-1986 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FD1J RANGER 6S 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FD1J RANGER PRO 6 2003-2008 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FD2J RANGER 6 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FD3H HAWK 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FD3W HAWK 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FE3H RAVEN 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FF17*K 1981-1985 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FF17*L 1986-1989 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FF19*K 1981-1985 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FF19*L 1986-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FF1J RANGER 8 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FF2H GRIFFON 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FG17*L 1986-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FG19*L 1986-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FG1J RANGER 9 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FG1J RANGER PRO 9 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FM1J RANGER 14 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FM1J RANGER PRO 14 2003-2008 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FM3M SHRIKE 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FS1K RANGER 50 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FS270 1984-1990 SUPER DOLPHIN SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FT16*L 1985-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FT1J RANGER 5Z 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FT1J RANGER PRO 5Z 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK FT3W KESTREL 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GD16*L 1986-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GD1J RANGER 7 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GD1J RANGER PRO 7 2003-2008 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GD3H HARRIER 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GH1H SUPER EAGLE 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GH1J RANGER 10 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GH1J RANGER PRO 10 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GH3H EAGLE 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GS22* 1984-1988 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GT17*K 1981-1986 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GT17*M 1986-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GT1J RANGER 8Z 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GT1J RANGER PRO 8Z 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
HINO TRUCK GT3H OSPREY 1991-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU C** SERIES TRUCKS CXY51 2001-2005 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU C** SERIES TRUCKS CXY51 2006- SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU C** SERIES TRUCKS CXZ51 GIGA 2001-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU E** SERIES TRUCKS EXY52 06/2000-09/2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FRD34 2005-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FRR32 1999-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FRR33 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FRR34 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSR11 1986-1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSR12 1986-1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSR32 1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSR32 TURBO 2000-2003 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSR33 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSR34 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSS12 1986-1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSS12 1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSS33 1996-2000 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FSS34 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTR11 1986-1990 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTR12 1986-1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTR32 05/2000-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTR32 1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTR33 05/2000-10/2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTR33 1996-2000 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTR34 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTS12 1986-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTS33 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FTS34 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVD23 2000-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVD32 2000-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVD34 2003-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVL23 2000-2005 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVM13 03/1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVM13 1988-02/1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVM23 1996-2000 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVM23 2000-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVR13 03/1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVR13 1987-02/1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVR23 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVR32 1999-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVR33 1996-2000 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVY23 2000-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVZ13 1987-1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVZ13 1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVZ23 1996-2000 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU F** SERIES TRUCK FVZ23 2000-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU G** SERIES TRUCKS GVD23 2000-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU G** SERIES TRUCKS GVR23 05/2000-2007 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
ISUZU G** SERIES TRUCKS GVR23 1996-04/2000 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FK415 1985-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FK415 1991-05/1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FK417 1989-04/1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FK417 1991-1995 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FK455 1987-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FM515 1985-1989 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FM517 1991-1995 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FM555 1988-1990 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FM557 1989-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FM557 1991-1995 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FP417 08/1996-07/1998 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FP418 1985-1997 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FP547 07/1998-10/2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FS427 05/1996- SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FS428 1987-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FV415 1985-1995 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FV417 08/1996-07/1998 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FV418 1987-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FV458 1985-1995 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
MITSUBISHI & FUSO FK, FM, FN, FP, FS, FV SERIES FV547 1998-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CLG87 1989-1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CLG88 1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CMA81 1984-1988 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CMA86 1983-1990 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CMA87 1987-1990 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CMB87 1988-1989 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CMF87/CM180 1989-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CMF88 1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CPA87 1989-1993 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CPB12 1984-1990 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CPB14 1989-1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CPB87 1989-1993 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CPB88 1993-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CPC12 1989-1991 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CPC14 1989-1993 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CPC15 1992-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CWA12 1990-1992 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CWA14 1992-1993 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK CWA15 1993-1996 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK LKC183/LK185 1996- SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK LKC210/LK185 1996-LK235 1999- SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK LKC215 (LK245) 2003- SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK MKB210/MK180 1998- SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK MKB210/MK185 MK190 MK225 1996-2000 SEAT ASSEMBLY 1 DRIVER MECHANICAL ASSEMBLY View
NISSAN & UD TRUCK MKB210/MK235 1995-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK MKB215 (MK240 MK245 MK265) 2003- SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK PKB210/PK235 1996-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK PKC210/PK220 PKA220 1999-2002 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK PKC212/PK255 2000-2003 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK PKC215/PK245 PK265 2003- SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
NISSAN & UD TRUCK PKC310/PK240 PK250 1995-2003 SEAT ASSEMBLY 1 DRIVER MECHANICAL SUSPENSION View
Available in Pack Quantity of
1
Products to compare:
Comparing Products
