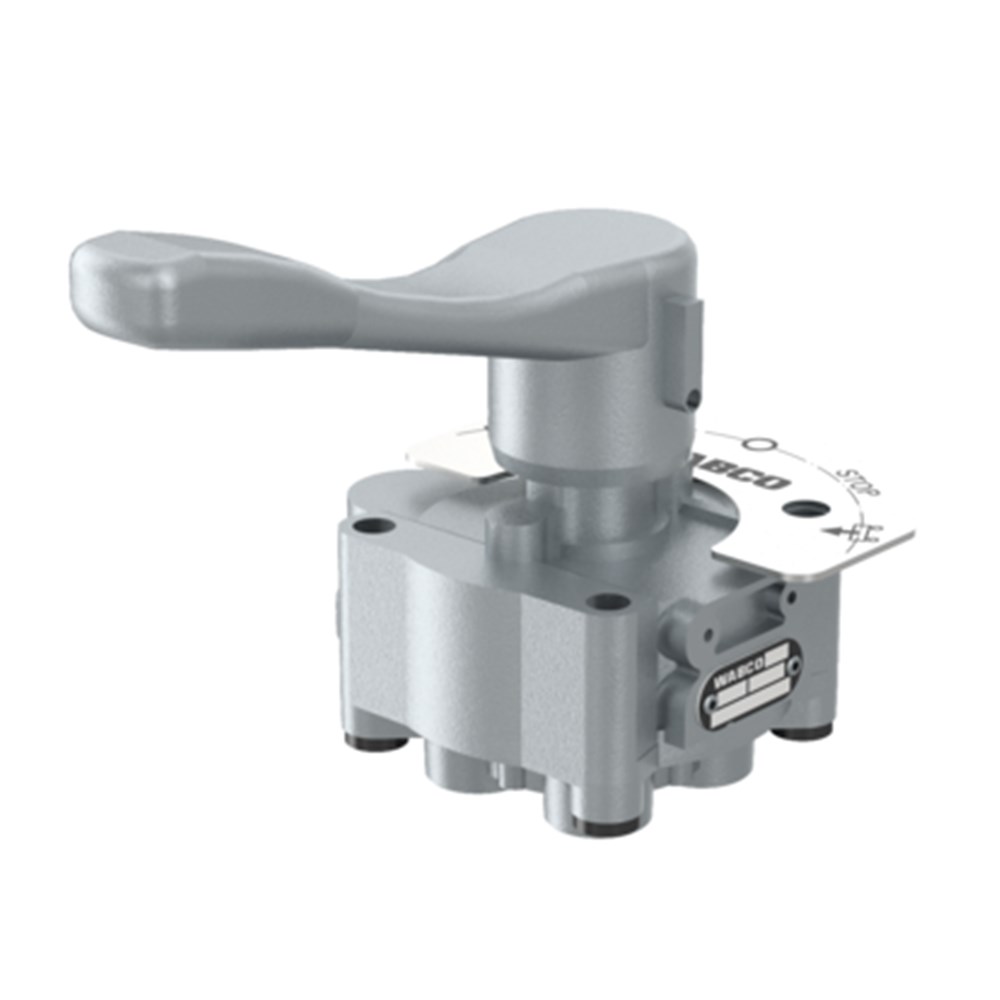

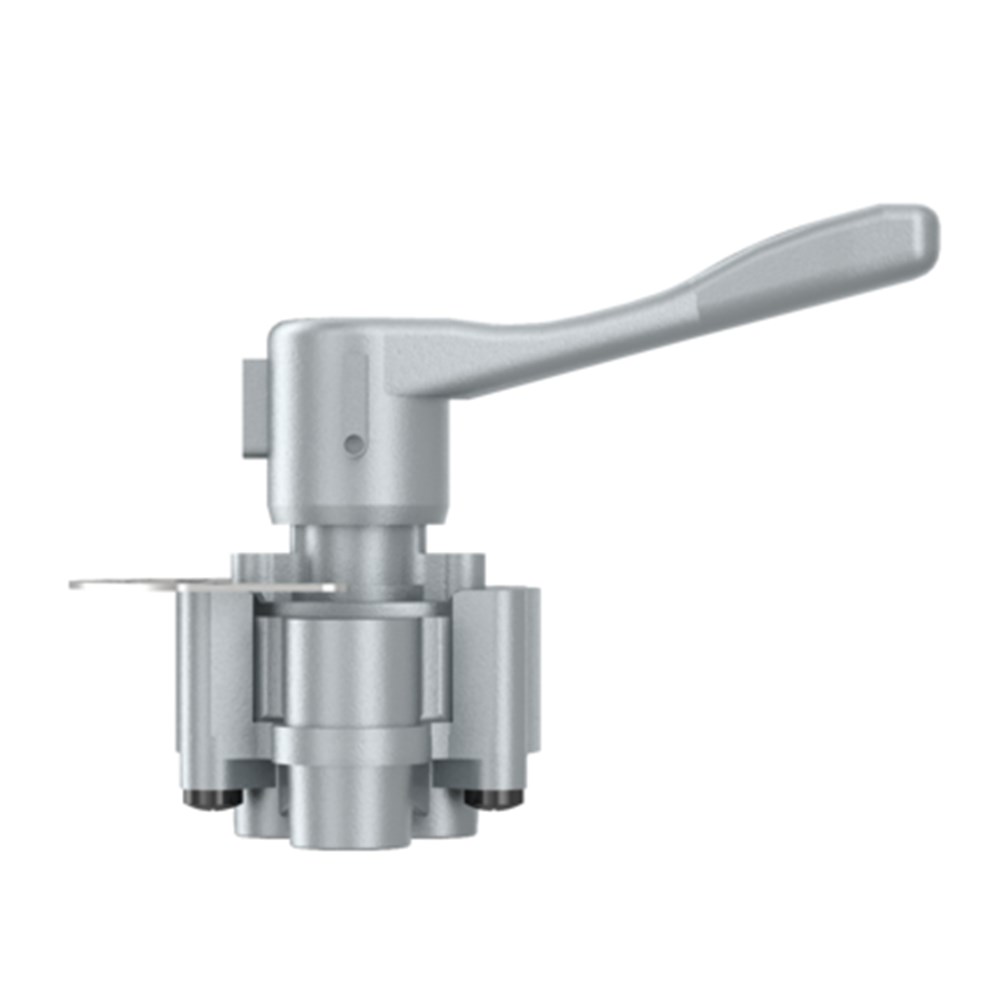

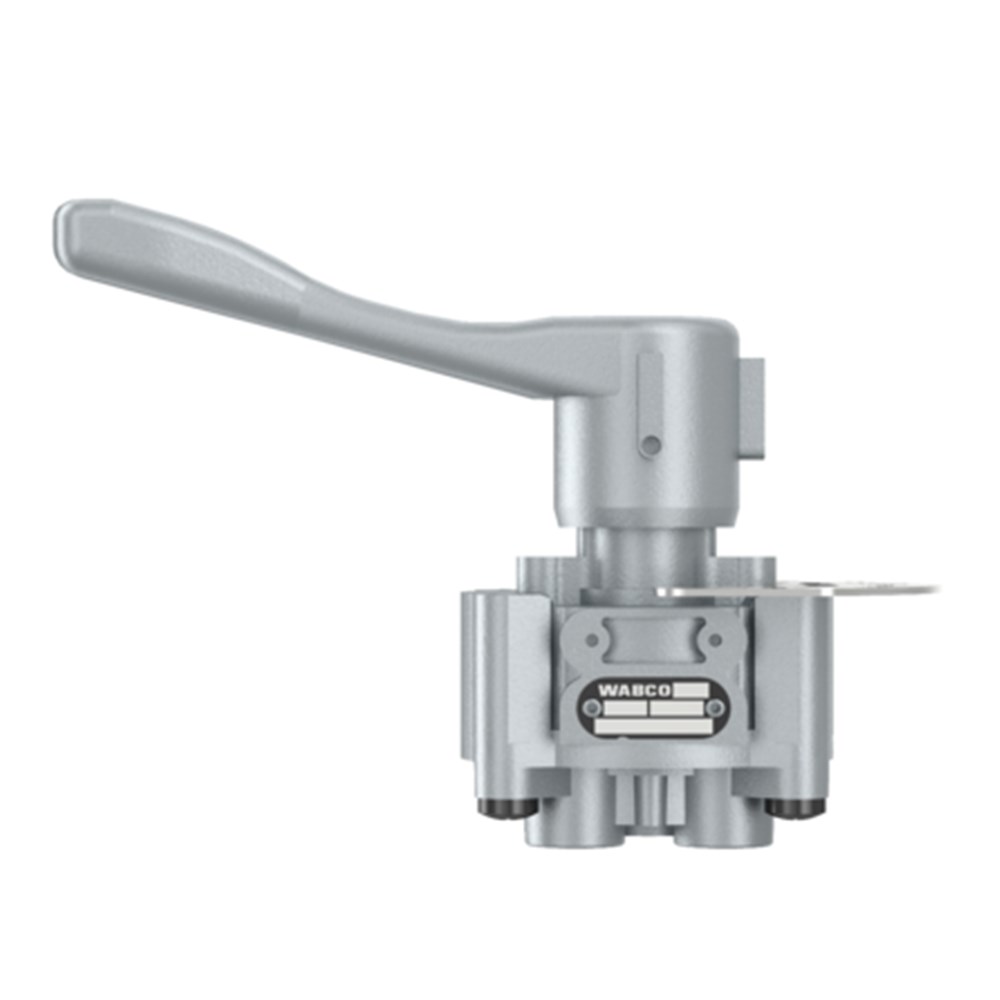

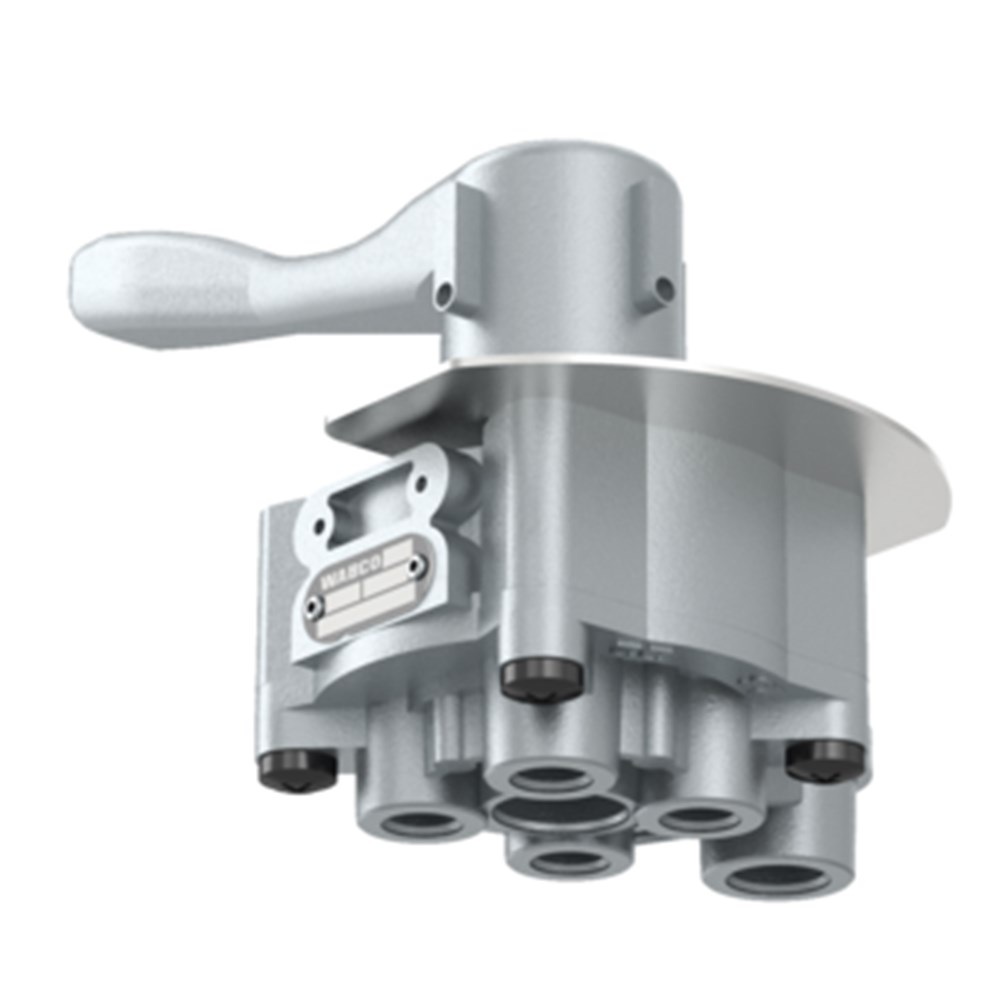

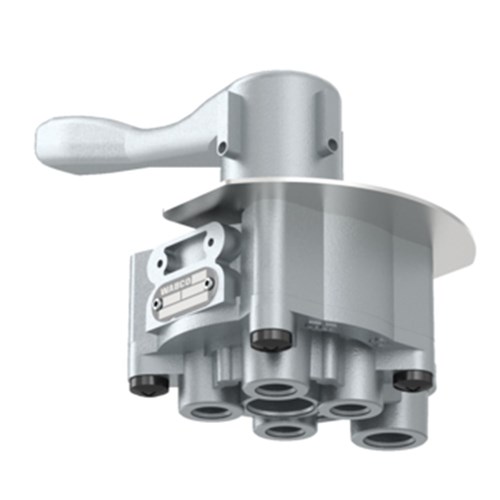

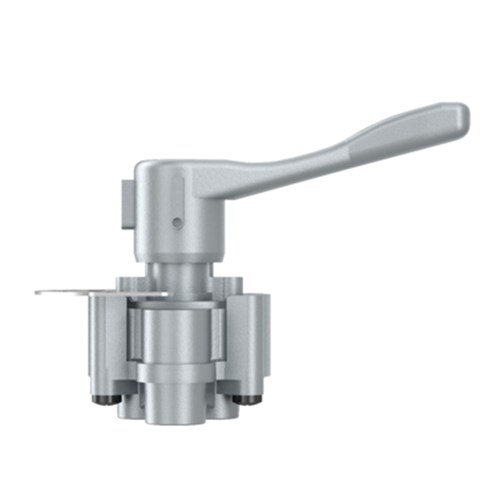

WABCO HAND OPERATED RAISE LOWER VALVE

Product Code: WAB4630320200

$292.72
Afterpay Logo
4 payments of $73.18
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
WABCO Rotary Slide Valve.

WABCO is a leading global supplier of technologies that improve the safety, efficiency and connectivity of commercial vehicles.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Brand WABCO Original
Calculated Volume (dm³) 1.5998
Distance between holes 55.0 mm
Handle length 122 mm
Max. operating pressure 10.0 bar
Mounting 4 x M8
Port thread 1 M16 x 1.5
Port thread 21 M12 x 1.5
Port thread 22 M12 x 1.5
Port thread 23 M12 x 1.5
Port thread 24 M12 x 1.5
Port threads M12 x 1.5
Size (mm x mm x mm) 154 x 98 x 106
Temperature range -40°C to +80°C
Type Without Dead man's switch
Weight (kg) 1.171
Available in Pack Quantity of
1
