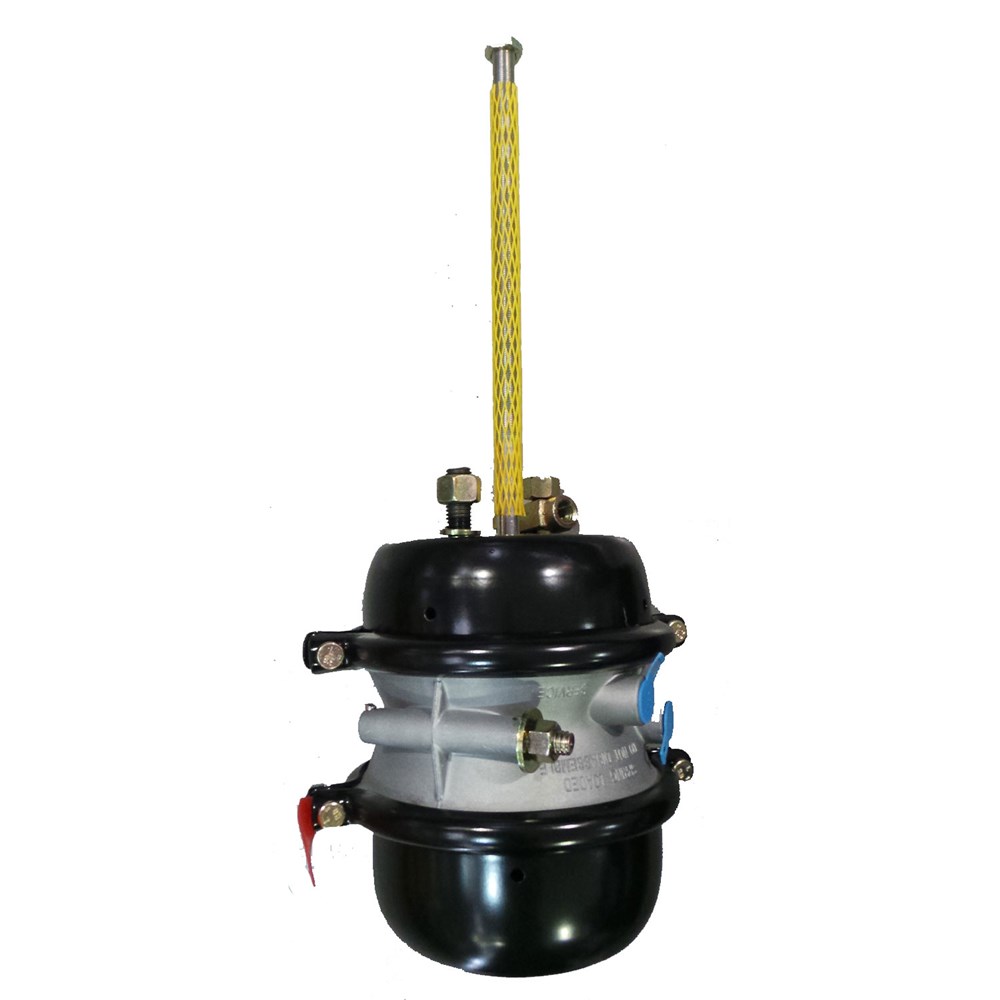

TYPE 30/30 SPRING BRAKE CHAMBER

Product Code: ABR3030S

$52
Afterpay Logo
4 payments of $13.00
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

Brake Chambers are designed to provide years of safe, dependable operation for service, parking or emergency braking applications. These spring brakes and service chambers feature rugged construction, heavy-gauge housings and steel components to reduce corrosion and potential equipment failure.

  • Key Features
  • Specifications
  • Documents
  • Warranty
Treated and coated for corrosion protection, dramatically extending life
Guided spring pressure plate prevents side forces which cause diaphragm sidewall and seal wear
Steel internal rod and slotted centre seal design improves alignment of moving parts and prevents premature seal wear

This part is suitable for the following vehicles:

Brand Make Model Description Qty Fitting Position Fitting Notes Category
ISUZU F** SERIES TRUCK FVD23 2000-2007 BRAKE CHAMBER ASSEMBLY 2 REAR AXLE View
ISUZU F** SERIES TRUCK FVR13 03/1992-1996 BRAKE CHAMBER ASSEMBLY 2 REAR AXLE View
ISUZU F** SERIES TRUCK FVR23 1996-2002 BRAKE CHAMBER ASSEMBLY 2 REAR AXLE View
ISUZU F** SERIES TRUCK FVR32 1999-2002 BRAKE CHAMBER ASSEMBLY 2 REAR AXLE View
ISUZU F** SERIES TRUCK FVR33 1996-2000 BRAKE CHAMBER ASSEMBLY 2 REAR AXLE View
ISUZU F** SERIES TRUCK FVR34 2003-2007 BRAKE CHAMBER ASSEMBLY 2 REAR AXLE View
ISUZU G** SERIES TRUCKS GVR23 05/2000-2007 BRAKE CHAMBER ASSEMBLY 2 REAR AXLE View
Technical Specifications
Size (mm) – Length 450
Size (mm) – Width 250
Available in Pack Quantity of
1
